| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Width |

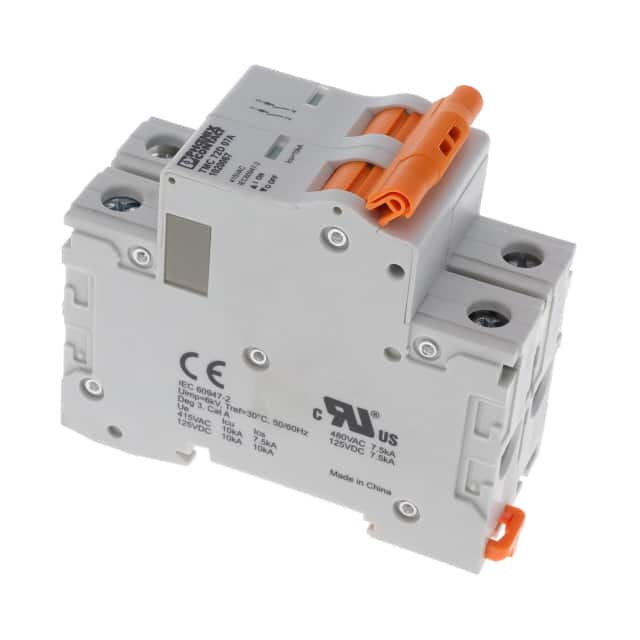

The Phoenix Contact 1020067 is a thermal magnetic miniature circuit breaker designed for branch overload and short-circuit protection. It is a 2-pole device with a current rating of 7A and a voltage rating of 277V.
This circuit breaker offers an interrupt capacity of 10 kAIC at up to 277/480 V AC and 125 V DC, making it suitable for various applications. It is designed for DIN rail mounting and features a lever actuator.
Typical applications for this series of circuit breakers include protection of cables, motors, generators, transformers, thyristors, silicon rectifiers, computers and peripheral equipment, industrial process control systems, telecommunications equipment, and power supplies.
The TMC 7... series, to which this part likely belongs, is UL 1077 Recognized, providing supplemental protection. The TMC 8... series is UL 489 Listed for branch circuit protection. Both product lines carry the CE mark.
The current rating is 7A.
The voltage rating is 277V.
It has a 2-pole configuration.
It is a thermal magnetic breaker.
It is designed for DIN rail mounting.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
The available trip curve options are B, C, and D.
