| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

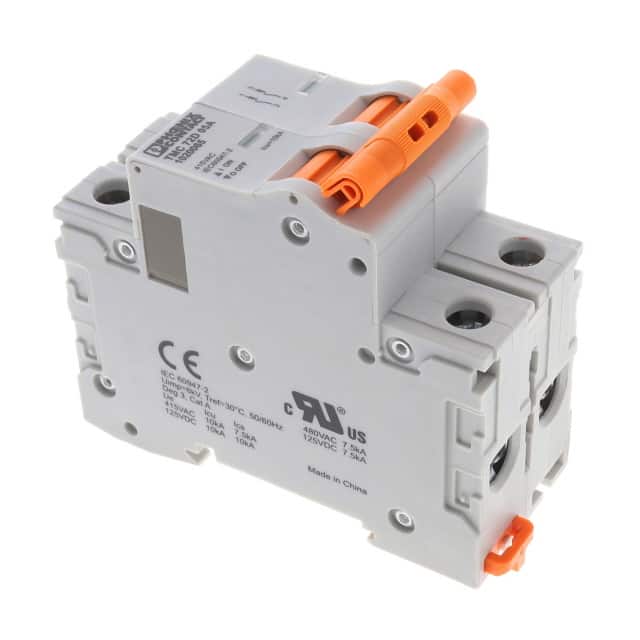

The Phoenix Contact 1020065 is a thermal magnetic circuit breaker designed for branch overload and short-circuit protection. It is a 2-pole unit with a current rating of 5A and a voltage rating of 277V.
This circuit breaker is suitable for a variety of applications, including the protection of cables, motors, generators, transformers, and industrial process control systems. It features a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation, ensuring reliable protection.
The TMC 7/8 series, to which this breaker belongs, offers configurations with B, C, and D trip curves. The TMC 8 series is UL 489 Listed, providing branch circuit protection with an interrupt capacity of 10 kAIC. The TMC 7 series is UL 1077 Recognized for supplemental protection.
This specific model is designed for DIN rail mounting, making installation straightforward in control panels and enclosures. It also carries the CE mark, indicating compliance with European safety standards.
The current rating is 5A.
The voltage rating is 277V.
It has 2 poles.
It is a Thermal Magnetic breaker.
It is mounted on a DIN Rail.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
The circuit breakers are available with B, C, and D trip curve options.
