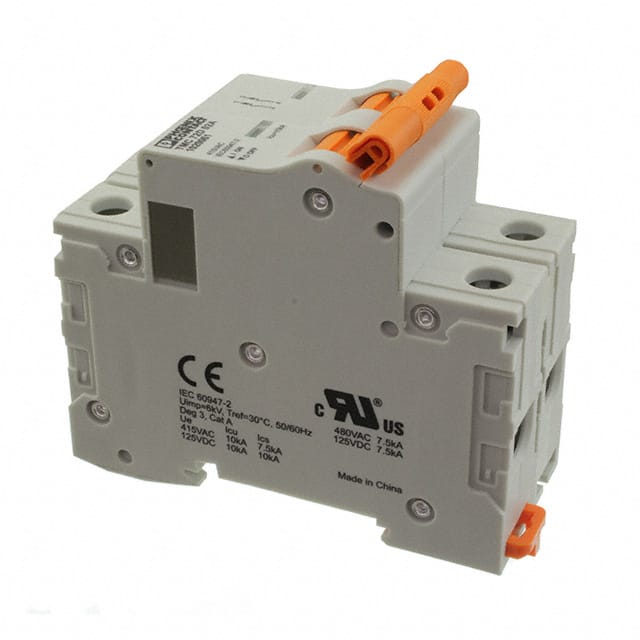

The Phoenix Contact 1020061 is a thermal magnetic circuit breaker rated for 2A at 277V AC and 125V DC. It provides overcurrent protection with 2 poles and a lever actuator. The breaker supports multiple trip curves (B, C, D) for various applications.
Electrical specifications include a short-circuit current rating (SCCR) of 7.5 kA and an interrupting capacity (AIC) of 10 kA. This makes it suitable for industrial and commercial power distribution systems.
The breaker is designed for DIN Rail mounting, simplifying installation in control panels and distribution boards. The lever actuator allows easy manual on/off control. The thermal magnetic mechanism combines thermal and magnetic trip elements for reliable protection.
Applications include overcurrent protection in lighting, HVAC, building automation, and machinery control panels. The 2-pole configuration enables switching of both line and neutral in single-phase systems.
The breaker is rated for 277V AC and 125V DC.
It is a 2-pole circuit breaker.
The breaker supports trip curves B, C, and D.
It mounts on a DIN rail.
It uses a lever actuator.
The short-circuit current rating is 7.5 kA.
The interrupting capacity is 10 kA.
