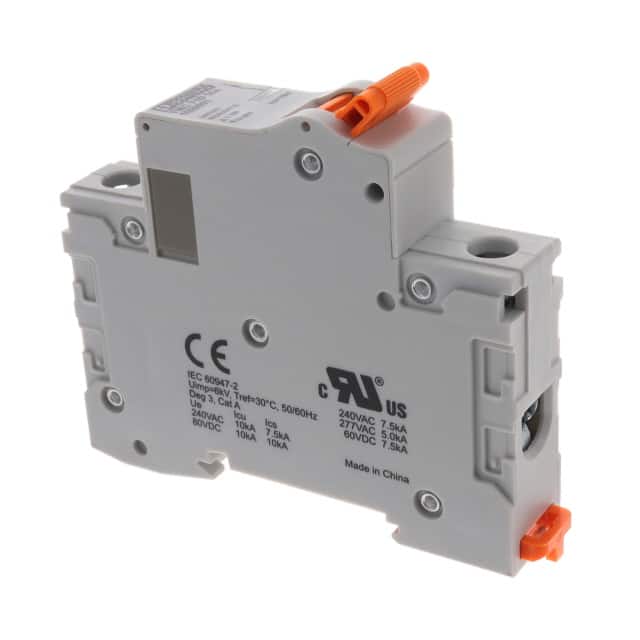

The Phoenix Contact 1020051 is a single-pole miniature circuit breaker (MCB) with a thermal magnetic trip mechanism. It is rated for 16A and operates at up to 277V AC.
This circuit breaker features a 10 kAIC interrupt capacity, providing essential branch overload and short-circuit protection. It is designed for easy installation on a 35 mm NS35 DIN rail, making it suitable for various industrial and control system applications.
Key specifications include a 16A current rating, 277V voltage rating, and a 1-pole configuration. The breaker type is thermal magnetic, and it utilizes a lever actuator. Accessories such as auxiliary contacts, alarm contacts, shunt trips, and busbars are available for expanded functionality.
Typical applications for this series include protection of cables, motors, generators, transformers, thyristors, silicon rectifiers, computers, peripheral equipment, industrial process control systems, telecommunications equipment, and power supplies.
The current rating is 16A.
The voltage rating is 277V.
It has 1 pole.
It is a Thermal Magnetic breaker.
It is mounted on a DIN Rail.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
Trip curve options include B, C, and D.
