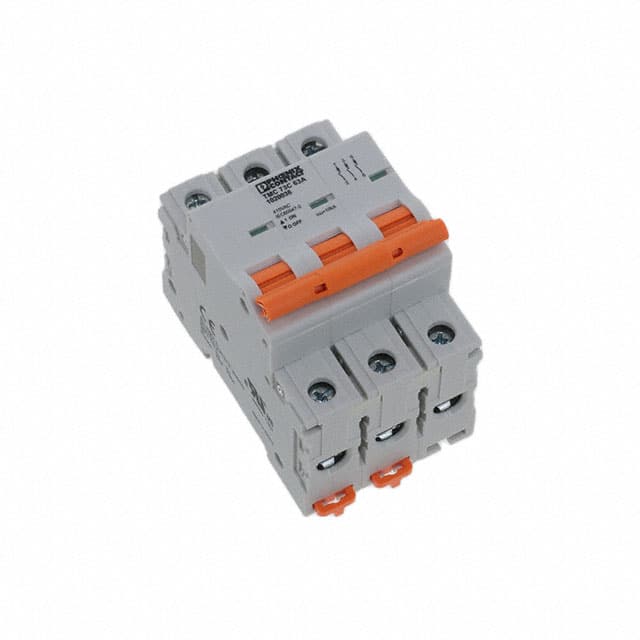

Phoenix Contact's TMC 7 series offers thermal-magnetic supplementary protectors and circuit breakers for robust overcurrent protection. The 1020036 model is a 3-pole, 63A circuit breaker rated for 277V AC systems.
Designed for DIN rail mounting, this breaker features a lever actuator and visual status indication for easy operation and monitoring. It complies with UL 1077, UL 489, and EN 60947-2 standards, ensuring reliable performance in various applications. The breaker is equipped with a trip-free, snap-action mechanism for enhanced safety and reduced contact wear.
Available with B, C, and D trip curves, the TMC 7 series circuit breakers are suitable for a wide range of load types, from sensitive equipment to motors and generators. This dual-rated breaker simplifies inventory by covering both AC and DC ratings within a single part number.
Key features include secure screw terminations, a 7.5 kA SCCR for the TMC 7 series, and multiple accessory options for expanded functionality. The breaker is ideal for use in switchgear, panel boards, and electrical equipment requiring dependable overcurrent protection.
The current rating is 63A.
The voltage rating is 277V.
It has 3 poles.
It is a thermal-magnetic breaker.
It is designed for DIN rail mounting.
The available trip curves are B, C, and D.
The AC voltage rating is 277/480 V AC and the DC voltage rating is 60/125 V DC.
