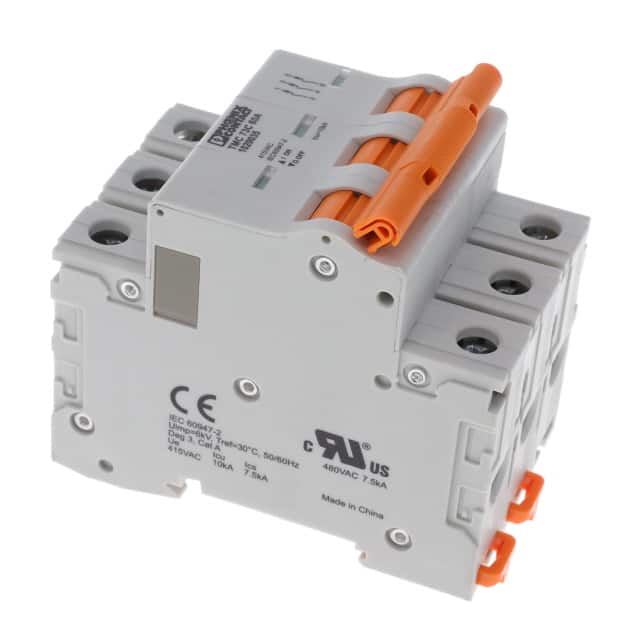

The Phoenix Contact 1020035 is a thermal magnetic circuit breaker from the TMC 7 series, designed for overcurrent protection in electrical systems. This 3-pole breaker features a 60A current rating and a 277V AC voltage rating, making it suitable for various applications.
It is equipped with a lever actuator and is designed for DIN rail mounting, ensuring easy installation in control panels and switchgear. The breaker offers a D-curve trip characteristic, providing protection for loads with high inrush currents such as motors and generators. It also has a short circuit current rating (SCCR) of 7.5 kA and an interrupting rating (AIC) of 10 kA.
This dual-rated breaker can be used in systems up to 277/480 V AC and 60/125 V DC. The TMC 7 series breakers comply with UL 1077, UL 489, and EN 60947-2 standards. They feature a trip-free, snap-action mechanism for reliable switching behavior and visual status indication for easy circuit monitoring.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The Phoenix Contact 1020035 circuit breaker has a current rating of 60A.
The voltage rating for the 1020035 circuit breaker is 277V AC.
The Phoenix Contact 1020035 circuit breaker has 3 poles.
The Phoenix Contact 1020035 is a Thermal Magnetic circuit breaker.
The Phoenix Contact 1020035 circuit breaker is designed for DIN Rail mounting.
The 1020035 circuit breaker features a D-curve trip characteristic.
The TMC 7 series circuit breakers are rated for use in systems up to 480V AC.
