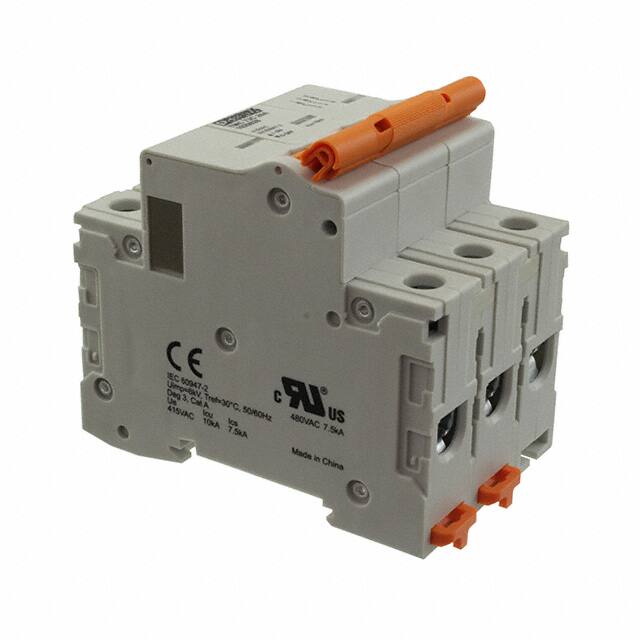

1020028 The Phoenix Contact 1020028 is a 3-pole thermal magnetic circuit breaker rated for 20A and 277V. It is designed for DIN rail mounting.
Mfr Part #:

1020028

Mfr Name: Phoenix Contact
Phoenix Contact
The Phoenix Contact 1020028 is a 3-pole thermal magnetic circuit breaker rated for 20A and 277V. It is designed for DIN rail mounting.
Stock on Request

1020028 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Actuator Type
Breaker Type
Current Rating
Current Rating (Amps)
Illumination
Mounting Type
Number of Poles
Voltage Rating
View Similar Products (0)

1020028 Description

Short technical summary and product information.

The Phoenix Contact 1020028 is a thermal magnetic circuit breaker designed for reliable overcurrent protection. It features a 20A current rating and a 277V voltage rating, suitable for various industrial applications.



This circuit breaker is a 3-pole unit, providing comprehensive protection for circuits. It is equipped with a lever actuator for easy switching and visual status indication. The DIN rail mounting type ensures straightforward installation in control panels and electrical enclosures.



As part of the TMC 7 series, this breaker offers robust thermal-magnetic tripping characteristics. It is ideal for protecting circuits and loads against overcurrent events, ensuring system safety and operational continuity. The durable construction and reliable performance make it a suitable choice for demanding environments.

1020028 Quick Information

Product Type: Circuit Breaker
Series: TMC 7
Canonical Name: Phoenix Contact 1020028 Thermal Magnetic Circuit Breaker
Subcategory: Thermal Magnetic Circuit Breaker

1020028 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1020028 Features

  • Rated for 20A continuous current.
  • 277V AC 3-pole circuit breaker.
  • Thermal magnetic overcurrent protection.
  • DIN rail mountable design.
  • Lever actuator for manual operation.

1020028 Applications

  • Overcurrent protection for industrial control panels
  • DIN rail mounted circuit breaker applications
  • Thermal-magnetic protection for branch circuits
  • Supplementary protection in switchgear assemblies
  • Overcurrent protection for 277V AC systems

1020028 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the rated current of this circuit breaker?

20A.

What is the rated voltage of this circuit breaker?

277V.

How many poles does this circuit breaker have?

3 poles.

What type of circuit breaker is this?

Thermal magnetic.

What is the mounting style of this circuit breaker?

DIN rail mount.

What is the actuator type for this circuit breaker?

Lever.

1020028 Alternate Parts

Same form/fit/function or matching attribute configuration across different manufacturers.
View All Alternate Parts
GMB63H3PC20
GMB63H3PC20
Carlo Gavazzi
The Carlo Gavazzi GMB63H3PC20 is a 3-pole miniature circuit breaker rated for 20A and 480V. It features thermal-magnetic protection and a C-curve tripping characteristic.
View Part
BR3D20UC
BR3D20UC
Weidmüller
The Weidmüller BR3D20UC is a 3-pole, 20A miniature circuit breaker with a thermal magnetic trip type. It is designed for DIN rail mounting and has a voltage rating of 277V.
View Part
SU3C20UC
SU3C20UC
Weidmüller
The Weidmüller SU3C20UC is a 3-pole miniature circuit breaker with a thermal magnetic trip type. It features a 20A current rating and a 277V voltage rating.
View Part
BR3C20UC
BR3C20UC
Weidmüller
The Weidmüller BR3C20UC is a 3-pole thermal magnetic circuit breaker rated for 20A and 277V. It features DIN rail mounting.
View Part
