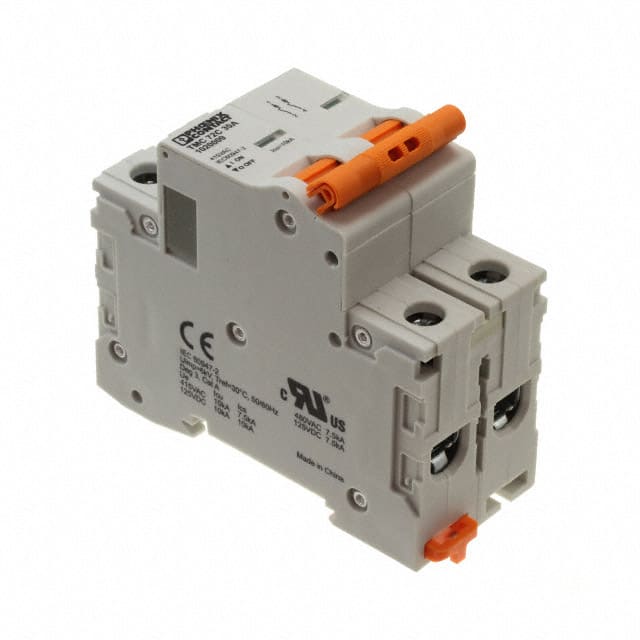

The Phoenix Contact 1020009 is a 2-pole thermal magnetic circuit breaker designed for reliable overcurrent protection. It is rated for 30A and operates at up to 277V AC. This breaker features a DIN rail mounting type and a convenient lever actuator for switching.
With a thermal-magnetic trip mechanism, it offers protection against overloads and short circuits. The TMC 7 and TMC 8 series, to which this breaker belongs, are designed for use in switchgear, panel boards, and electrical equipment, ensuring safe and dependable operation. They comply with industry standards such as UL 1077 and EN 60947-2.
This circuit breaker is suitable for a wide range of applications requiring robust protection. Its dual-rated AC/DC capability and various trip curves (B, C, D) make it a versatile component for protecting circuits and loads in diverse electrical systems.
The breaker is rated for 277V AC and 125V DC.
30A.
2 poles.
DIN Rail mounting.
B, C, and D trip curves are selectable.
SCCR is 7.5 kA and AIC is 10 kA.
Thermal magnetic circuit breaker.
