| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating | |
| Width |

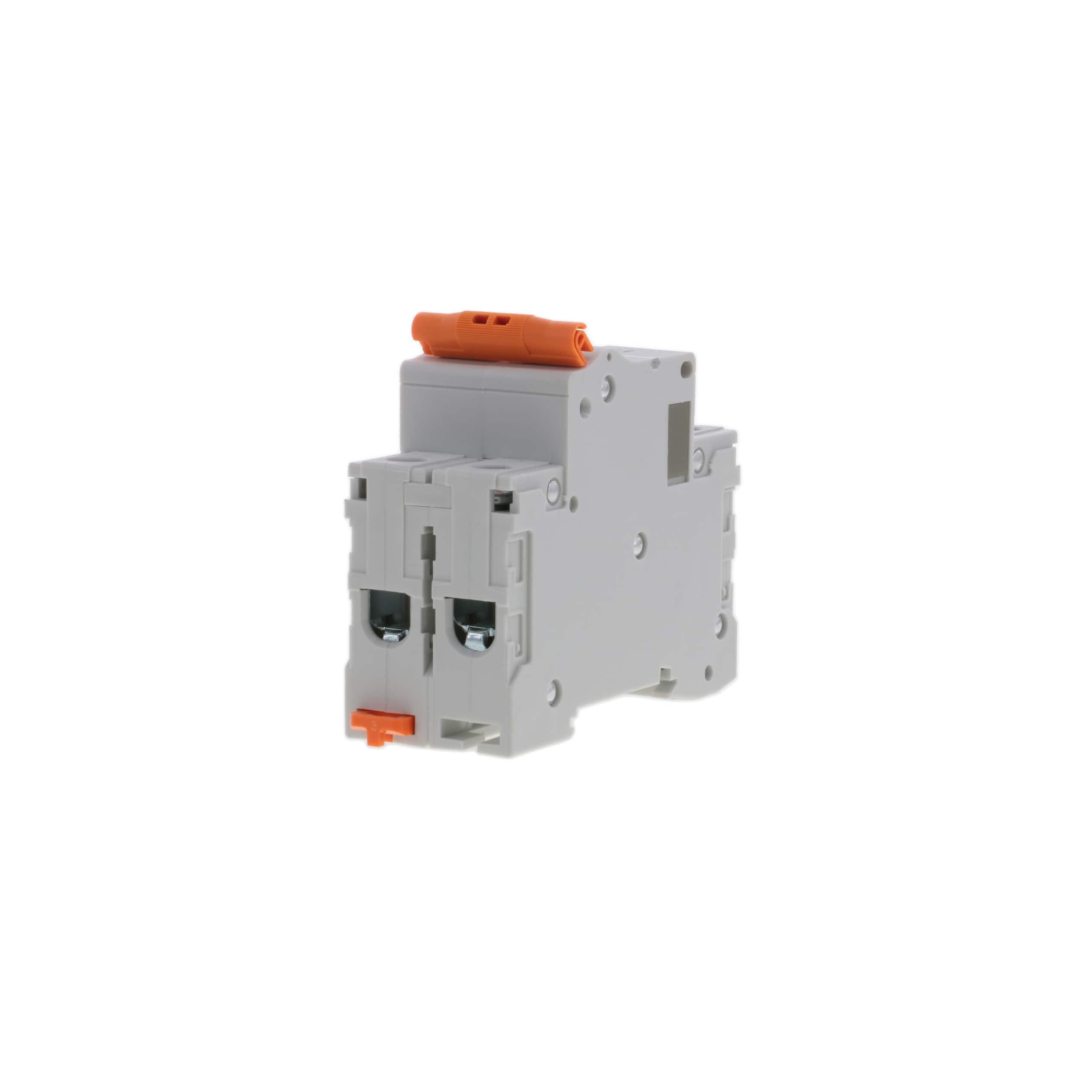

The Phoenix Contact 1020001 is a thermal magnetic circuit breaker designed for branch overload and short-circuit protection. It features a 2-pole configuration, an 8A current rating, and a voltage rating of 277V.
This circuit breaker is UL 489 Listed, offering an interrupt capacity of 10 kAIC. It is suitable for a wide range of applications including protection of cables, motors, generators, transformers, and industrial process control systems. The breaker mounts on a 35 mm NS35 rail and has a width of 17.6 mm per pole.
Available with B, C, and D trip curve options, the TMC 8... series, which includes the 1020001, provides flexible protection solutions. Accessories such as auxiliary contacts, alarm contacts, shunt trips, and busbars are also available for expanded functionality. The TMC 8... series carries the CE mark and is UL Listed for the U.S. and Canada.
The current rating is 8 A.
The voltage rating is 277 V.
It has 2 poles.
It is a thermal magnetic circuit breaker.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
Trip curve options include B, C, and D.
It is mounted on a DIN rail.
