| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Width |

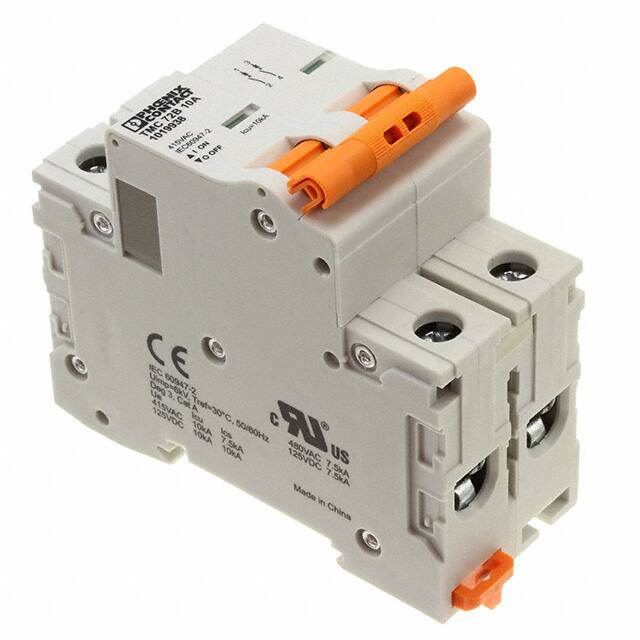

The Phoenix Contact 1019938 is a thermal magnetic miniature circuit breaker designed for branch overload and short-circuit protection. It features a 10A current rating and a 277V voltage rating, with a 2-pole configuration.
This circuit breaker is suitable for a variety of applications including protection of cables, motors, generators, transformers, and electronic equipment. It offers an interrupt capacity of 10 kAIC at up to 277/480 V AC and 125 V DC.
The device mounts on a 35 mm NS35 rail and has a width of 17.6 mm per pole. It includes a lever actuator for operation and visual status indication. Accessories such as auxiliary contacts, alarm contacts, shunt trips, and busbars are available.
UL 489 Listed for the U.S. and Canada, and CE marked, this circuit breaker provides reliable protection in industrial and telecommunications environments.
The current rating is 10A.
The voltage rating is 277V.
It has a 2-pole configuration.
It is a Thermal Magnetic breaker.
It uses DIN Rail mounting.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
The available trip curve options are B, C, and D.
