| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
62 pcs
|
62 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Diameter | |
| For Use With | |
| Height | |
| Lens Size | |
| Lens Style | |
| Lens Transparency | |
| Material | |
| Mounting Type | |
| Number of LEDs | |
| Optical Pattern | |
| Type | |
| Viewing Angle |

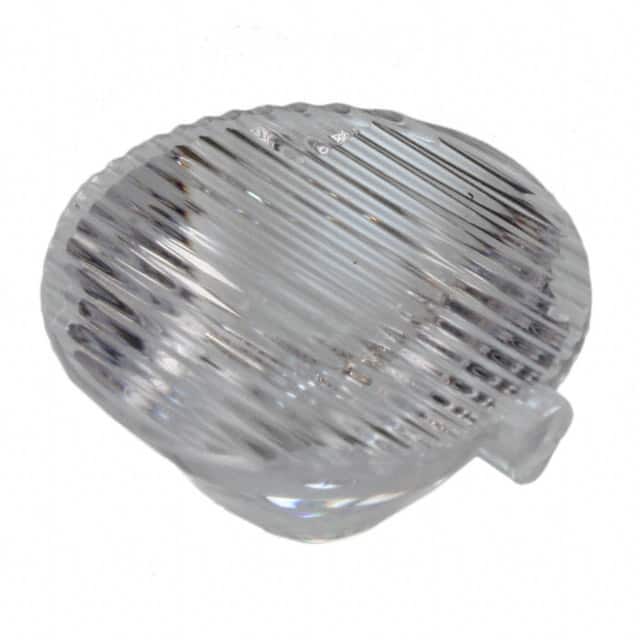

This Carclo Technical Plastics 10198 is a clear LED lens designed for single LED applications. It features an elliptical/oval ripple emission pattern, providing a specific light distribution. The lens is constructed from durable polycarbonate material and has a diameter of 20mm and a height of 10mm.
With a viewing angle of 40 x 10 degrees, this lens is suitable for applications requiring a focused yet spread beam. It is designed for use with various LED manufacturers, including Cree, LG Innotek, Lumileds, Nichia, Osram, Samsung, Seoul, Stanley, and Toshiba. The lens utilizes a snap-in mounting type for easy integration into fixtures.
This lens is part of Carclo Optics' popular 20mm optic family, offering TIR optics with a variety of beam options. The clear, rippled finish contributes to its specific optical performance. It is compatible with LEDs requiring a holder and is specified as RoHS3 Compliant, MSL 1, and REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The viewing angle is 40 x 10 degrees.
The lens is made from polycarbonate.
The diameter is 20mm.
The emission pattern is oval ripple.
It uses a snap-in mounting type.
The status is RoHS3 Compliant.
The MSL is 1 Unlimited.
