| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
19,254 pcs
|
19254 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section | |
| Connection Method | |
| Current | |
| Current Rating | |
| Features | |
| Mating Orientation | |
| Mounting Type | |
| Number of Levels | |
| Packaging Type | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type of Packaging | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

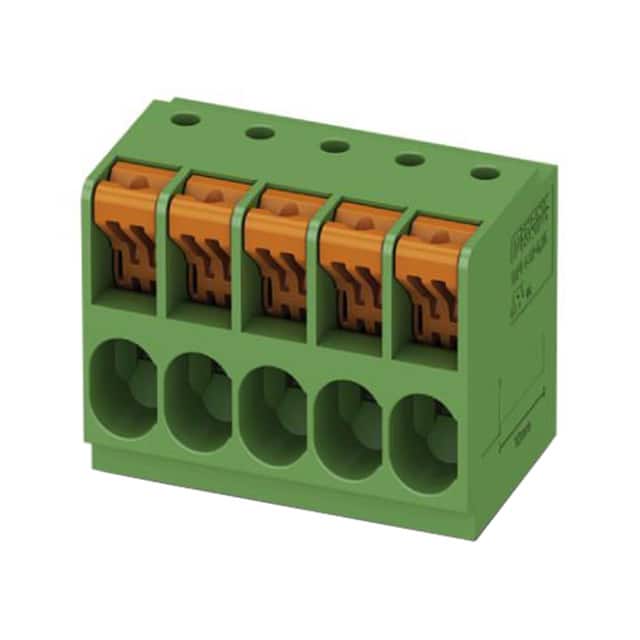

The Phoenix Contact 1017524 is a 5-position PCB terminal block from the TDPT series, designed for wire-to-board applications. It features a push-in spring connection method for fast, tool-free wiring of solid or ferruled conductors. The terminal block has a 6.35mm pitch and is rated for 30A current and 600V voltage, accommodating wire gauges from 10 to 24 AWG with a maximum conductor cross section of 4 mm². The through-hole mounting orientation is horizontal with the board, and the green housing includes a lever actuator for easy operation. This component is suitable for industrial control, power distribution, and building automation systems where reliable and efficient wiring is required.
It has 5 positions.
The pitch is 6.35mm.
The current rating is 30A.
The voltage rating is 600V.
It uses through-hole mounting.
It accepts 10-24 AWG wire.
It uses a push-in spring connection.
