| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
38 pcs
|
38 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross Section | |
| Connection Method | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mating Orientation | |
| Mounting Type | |
| Nominal Current | |
| Nominal Voltage | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Type of Packaging | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge | |
| Wire Termination |

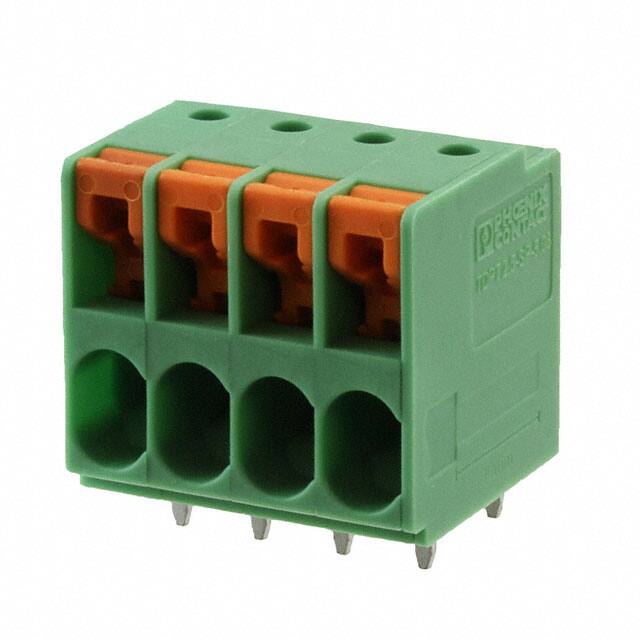

The Phoenix Contact 1017505 (TDPT 2,5/ 4-SP-5,08) is a 4-position PCB terminal block designed for wire-to-board applications. It features a 5.08mm pitch and a push-in spring connection that allows tool-less wiring of solid or ferruled conductors from 12-24 AWG (2.5 mm²). The lever actuated design simplifies installation and maintenance.
Rated at 32 A and 400 V, this terminal block is suitable for industrial control, power distribution, and building automation where reliable and efficient electrical connections are required. The side-entry mating orientation (0 degrees) facilitates horizontal wiring to the board. The component is packaged in cardboard for handling and storage.
The pitch is 5.08mm.
This terminal block has 4 positions.
Rated at 32A and 400V.
Accepts 12-24 AWG (2.5 mm²) conductors.
It uses a push-in spring connection (screwless).
Listed as RoHS3 compliant, but this data is unverified.
