Mfr Part #:

10142708-12000LF

Name: 10142708-12000LF
Brand: Amphenol ICC
SKU: 10142708-12000LF

Mfr Name: Amphenol ICC

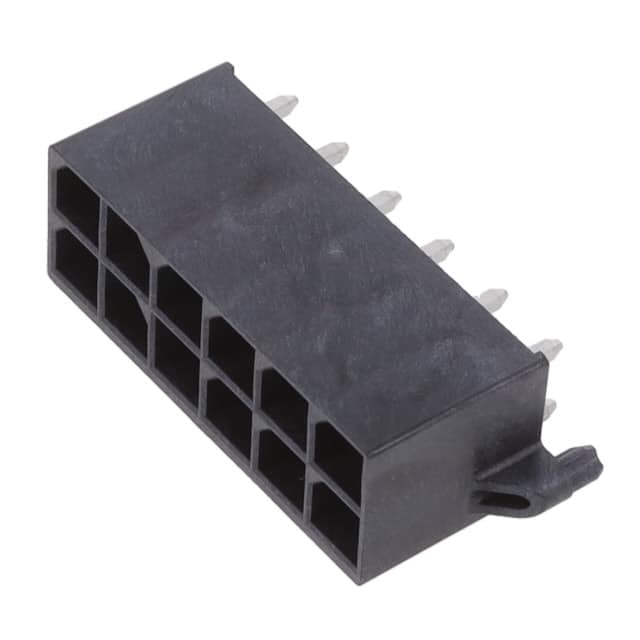

CONN 5.70MM VERTICAL THROU

Stock on Request

10142708-12000LF Description

Short technical summary and product information.

CONN 5.70MM VERTICAL THROU

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Same form/fit/function or matching attribute configuration across different manufacturers.

Amphenol ICC

MTK 5.7 DR 12P VT HDR AU

Category	Headers, Male Pins
Manufacturer Name	Amphenol ICC
Connector Type	Header
Contact Finish	Tin
Contact Finish Thickness	30.0碌in (0.76碌m)
Contact Length	0.147" (3.73mm)
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Features	Board Guide, Glow Wire Compliant
Insulation Color	Black
Insulation Height	0.583" (14.80mm)
Insulation Material	Liquid Crystal Polymer (LCP), Halogen Free
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	12
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature	-40°C ~ 105°C
Pitch	0.224" (5.70mm)
Row Spacing	0.224" (5.70mm)
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	600VAC/DC
