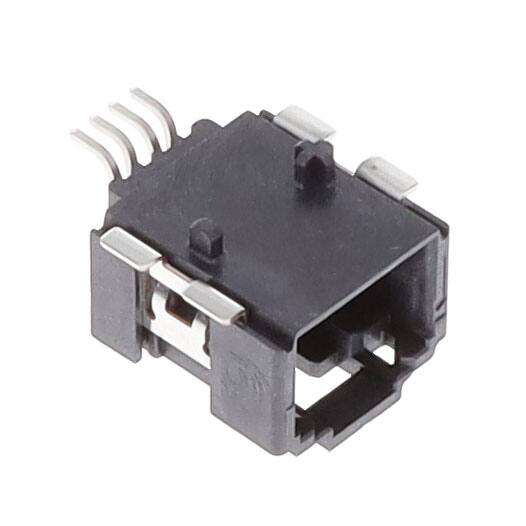

10142344-104KLF Amphenol ICC 10142344-104KLF is a 4-position shrouded header with male pins, 2.54mm pitch, surface mount right angle termination. It features a latch holder fastening and solder retention.
Mfr Part #:

10142344-104KLF

Available from 1 distributors
Mfr Name: Amphenol ICC
Amphenol ICC
Amphenol ICC 10142344-104KLF is a 4-position shrouded header with male pins, 2.54mm pitch, surface mount right angle termination. It features a latch holder fastening and solder retention.
✓ Total Stock: 256 pcs

10142344-104KLF Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
256 pcs
On Request
256 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

10142344-104KLF Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Finish Thickness
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Row Spacing
Shrouding
Style
Tape & Reel
Termination
Termination Style
Voltage Rating
View Similar Products (0)

10142344-104KLF Description

Short technical summary and product information.

The Amphenol ICC 10142344-104KLF is a 4-position shrouded header connector designed for board-to-cable/wire applications. It features male pin contacts with tin plating and a square contact shape. The connector has a 2.54mm pitch and 2.43mm row spacing, with a 2-row configuration. It is surface mount, right angle mounted, with solder termination. The housing is made of black thermoplastic with UL94 V-0 flammability rating. The connector includes a latch holder for secure fastening and features board guide and solder retention for reliable assembly. Electrical ratings include 4A current and 48V voltage. Operating temperature range is -40°C to 130°C. The contact finish thickness is 3.00µm. This connector is suitable for various applications requiring a compact, reliable interconnection.

10142344-104KLF Quick Information

Product Type: Shrouded Header, Male Pins
Series: MICROSPACE
Canonical Name: Amphenol ICC 10142344-104KLF 4 Position Shrouded Header, Male Pins, Surface Mount, Right Angle
Subcategory: Shrouded Header, Male Pins

10142344-104KLF Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

10142344-104KLF Features

  • 4-position shrouded header with 2.54mm pitch.
  • Surface mount, right angle termination.
  • Rated for 4A current and 48V voltage.
  • Features latch holder and solder retention.
  • Operating temperature range -40°C to 130°C.

10142344-104KLF Applications

  • Ideal for board-to-cable/wire interconnections.
  • Used in compact electronic assemblies.
  • Suitable for industrial and consumer applications.

10142344-104KLF FAQs

7 frequently asked questions generated from this part’s specifications.
What is the number of positions?

4 positions.

What is the pitch?

2.54mm.

What is the current rating?

4A.

What is the voltage rating?

48V.

What is the mounting type?

Surface mount, right angle.

What is the operating temperature range?

-40°C to 130°C.

What is the contact finish?

Tin, 3.00µm thickness.
