| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
23 pcs
|
23 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Gender | |
| Mating Cycles | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Tape & Reel | |
| Termination |

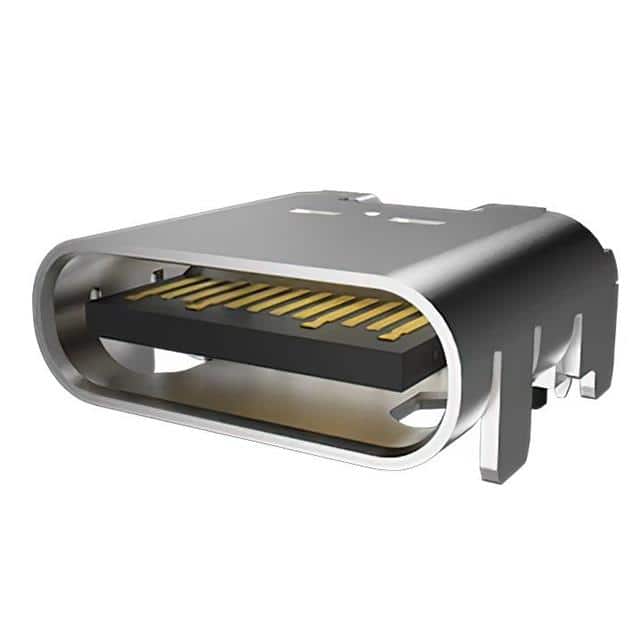

The Amphenol ICC 10137065-00021LF is a USB-C (USB TYPE-C) receptacle connector designed for high-speed data transfer. It features 24 contacts and supports USB 3.2 Gen 2 (also known as USB 3.1 Gen 2 and Superspeed+), enabling data rates up to 10 Gbps. The connector is shielded to provide electromagnetic interference (EMI) protection, ensuring signal integrity in demanding environments.
This connector is mounted using a surface mount, right angle orientation with through-hole retention for mechanical stability. It is rated for 10,000 mating cycles, offering durability for frequent use. The operating temperature range spans from -55°C to 85°C, making it suitable for a wide variety of applications including consumer electronics, industrial equipment, and automotive systems.
The single-port design is compact and horizontal, ideal for space-constrained designs. Termination is via solder, providing reliable electrical connections. This connector is commonly used in docking stations, hubs, and portable devices where USB-C connectivity is required.
USB-C (USB TYPE-C) receptacle.
24 contacts.
USB 3.2 Gen 2 (also known as USB 3.1 Gen 2 and Superspeed+).
Surface mount, right angle with through-hole retention.
Yes, it is shielded.
-55°C to 85°C.
10,000 cycles.
