| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel |

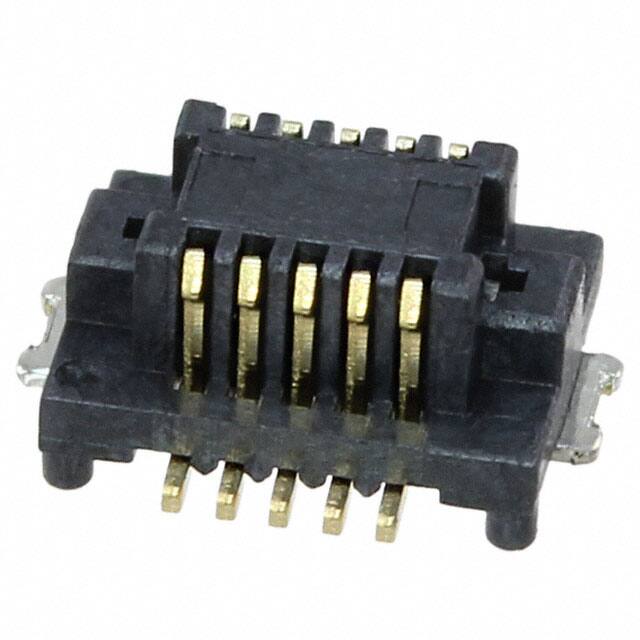

The Amphenol ICC 10132798-011100LF is a board-to-board receptacle connector with center strip contacts. It features 10 positions arranged in 2 rows with a 0.50mm pitch, making it suitable for high-density mezzanine stacking applications. The connector is surface mount and supports mated stacking heights of 3mm, 3.5mm, 4mm, and 4.5mm. The height above board is 2.16mm.
The contacts are finished with gold (1.0µin thickness) for reliable signal integrity. The connector includes board guide and solder retention features to assist with alignment and mechanical stability during assembly. The part is RoHS3 compliant and REACH unaffected, with an MSL rating of 1 (unlimited).
This connector is designed for use in compact electronic assemblies where board-to-board connections are needed with controlled stacking heights.
The pitch is 0.50mm (0.020").
It has 10 positions arranged in 2 rows.
Surface Mount.
It supports stacking heights of 3mm, 3.5mm, 4mm, and 4.5mm.
Gold with a thickness of 1.0µin (0.025µm).
Yes, it includes board guide and solder retention features.
2.16mm (0.085").
