| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,700 pcs
|
2700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Row Spacing | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

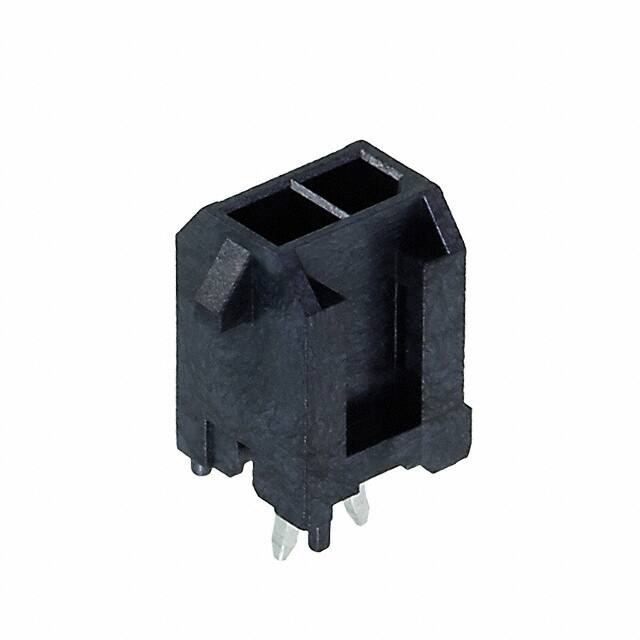

The Amphenol ICC 10127721-021LF is a 2-position, 2-row, shrouded header designed for board-to-cable/wire applications. It features male pin contacts with a square contact shape and a tin contact finish of 100.0µin (2.54µm) over a copper alloy base material. The connector is through hole mounted with kinked pin, solder termination and includes a locking ramp fastening type for secure mating.
The header has a black thermoplastic insulation material rated UL94 V-0 for flammability, with an insulation height of 11.00mm (0.433"). It is rated for 600VAC/DC and has an operating temperature range of -40°C to 105°C. The part includes a board guide feature and has a row spacing of 0.118" (3.00mm). All 2 positions are loaded.
It has 2 positions arranged in 2 rows, all positions loaded.
The voltage rating is 600VAC/DC.
It is a through hole mount connector with kinked pin, solder termination.
The operating temperature range is -40°C to 105°C.
The contacts are made of copper alloy with a tin finish of 100.0µin (2.54µm).
Yes, it is a shrouded header with a 4-wall design.
The insulation is made of thermoplastic with a UL94 V-0 flammability rating.
