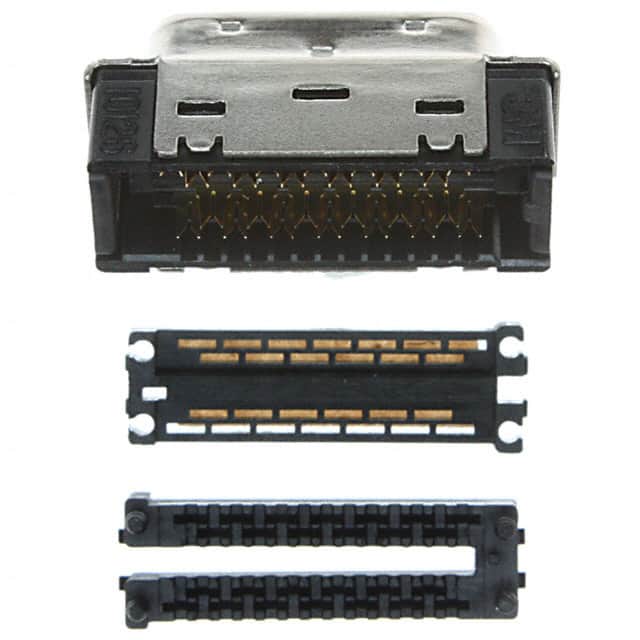

The 10126-6000EC is a 26-position, 2-row shielded IDC wiremount plug from 3M's Mini D Ribbon (MDR) 101 Series. It features a pitch of 0.050" (1.27 mm) and is designed for reliable repetitive plugging in MDR digital LCD interfaces and IEEE 1284C interfaces (36-contact version).
Contacts are made of beryllium copper with a 30 µin gold plating on the wiping area and gold flash on the IDC contacts. The contact underplating is 80 µin nickel. The plug uses a steel shroud with nickel plating and a glass reinforced polyester insulator (UL 94V-0). Body color is black; cover color is black for 28 AWG stranded/30 AWG solid wire (insulation diameter max 0.7 mm) and gray for 26 AWG solid wire (insulation diameter 0.7 mm to 0.9 mm, 68-contact only).
Electrical ratings include 1 A current, insulation resistance >1×10^8 Ω at 500 V DC, and withstanding voltage of 500 V RMS for 1 minute. Operating temperature range is -20°C to +85°C. The plug is RoHS compliant with RIA E1 and C1. UL file number E68080.
26 positions.
1 A.
Withstanding voltage 500 V RMS for 1 minute.
Free hanging (in-line).
IDC (Insulation Displacement Contact).
Gold on wiping area (30 µin) and gold flash on IDC contacts.
-20°C to +85°C.
