| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,420 pcs
|
1420 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Durability | |
| Features | |
| Halogen Free | |
| Housing Color | |
| Housing Flammability Rating | |
| Housing Material | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Mating Angle | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Operating Voltage | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| UL |

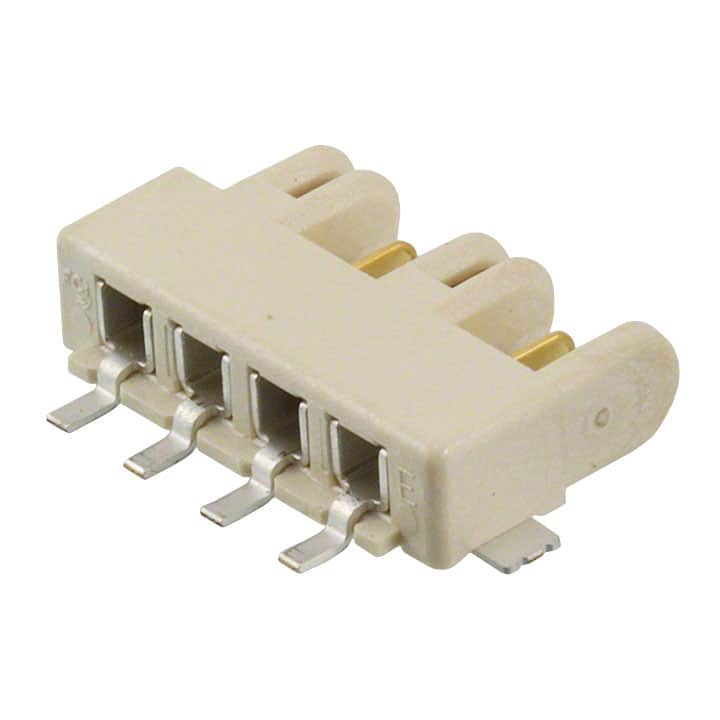

The Amphenol ICC 10120045-401LF is a hermaphroditic blade and receptacle connector from the RotaConnect family, designed for board-to-board applications. It features 4 positions with a 3.00mm pitch and supports surface mount right-angle mounting on the board edge. The connector's unique rotatable design allows mating at any angle between +90° and -60°, enabling flexible PCB layouts including perpendicular, coplanar, and angled connections.
The contacts are made of copper alloy with a gold and GXT finish, ensuring reliable electrical performance. The housing is molded from liquid crystal polymer (LCP) with a UL94 V-0 flammability rating and natural color. A board guide feature aids alignment during assembly. The connector is rated for 5A current and 125V operating voltage, with an operating temperature range of -40°C to 125°C. It is packaged in tape and reel for automated pick-and-place assembly.
4 positions.
3.00mm (0.118").
5A.
125V.
Board edge, surface mount, right angle.
-40°C to 125°C.
+90° to -60°.
