| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| SVHC Present | |
| Voltage Rating |

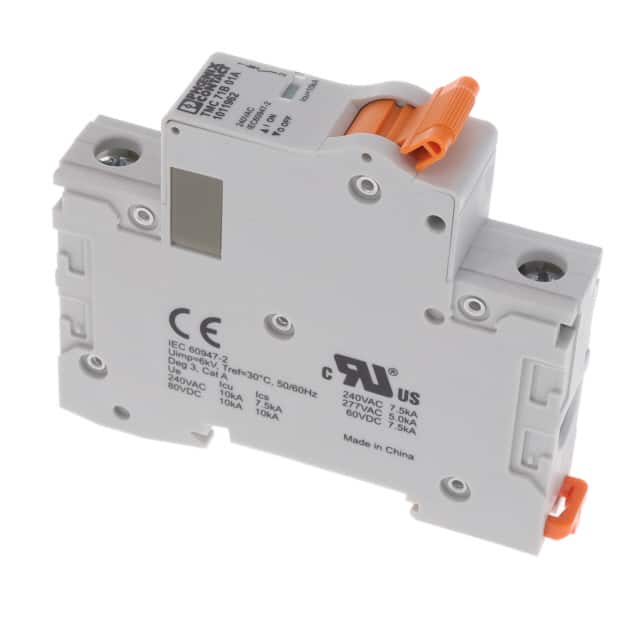

The Phoenix Contact 1011962 is a 1-pole thermal magnetic miniature circuit breaker (MCB) designed for branch overload and short-circuit protection. It has a current rating of 1A and a voltage rating of 277V.
This circuit breaker is suitable for a variety of applications including protection of cables, motors, generators, transformers, and electronic equipment. It features a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation. The breaker is designed for mounting on a 35 mm NS35 rail.
Key specifications include a 1A current rating, 277V voltage rating, and a 10 kAIC interrupt capacity at up to 277/480 V AC and 125 V DC. It is available with B, C, and D trip curve options. The TMC 8... series, which this breaker belongs to, is UL 489 Listed for the U.S. and Canada and carries the CE mark.
The current rating is 1A.
The voltage rating is 277V.
It has 1 pole.
It is a thermal magnetic breaker.
It is mounted on a DIN rail.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
