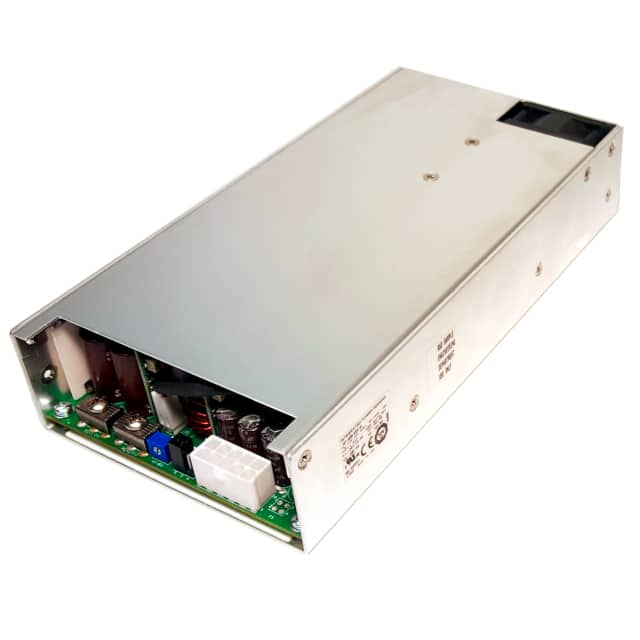

The Integrated Power Designs 101192003 is an enclosed AC/DC converter with a power rating of 400W. It provides multiple output voltages: 5V, 24V, 15V, and -15V, with corresponding current outputs of 40A, 5A, 5A, and 5A respectively. The converter operates with an input voltage range of 100 to 240 VAC and boasts an efficiency of 87%.
Key features include adjustable output, remote sense, and universal input. The unit is designed for chassis mounting and has dimensions of 213.4mm x 105.4mm x 40.9mm. It is approved by CE, TUV, and UKCA, meeting standards 60601-1 and 62368-1.
This AC/DC converter is suitable for applications in ITE (Commercial) and Medical sectors. Its operating temperature range is -20°C to 70°C with derating. The product is RoHS3 Compliant and has an MSL rating of 1.
Output 1: 5V at 40A, Output 2: 24V at 5A, Output 3: 15V at 5A, Output 4: -15V at 5A.
100-240 VAC.
-20°C to 70°C with derating.
87%.
60601-1 and 62368-1.
Chassis mount.
213.4mm x 105.4mm x 40.9mm (8.40" x 4.15" x 1.61").
