| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

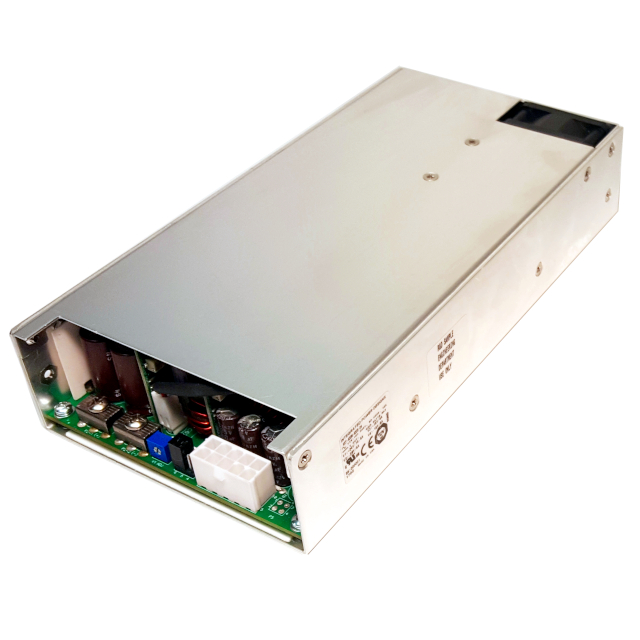

The Integrated Power Designs 101189304 is an enclosed AC DC converter designed for ITE (Commercial) and Medical applications. It delivers a total power of 400W and accepts a universal input voltage range of 100 to 240 VAC.
This converter provides four distinct output voltages: 5V, 28V, 15V, and -15V, with corresponding current ratings of 40A for the 5V output and 5A for the other three. It boasts an efficiency of 87% and features like adjustable output and remote sense capabilities.
The unit is chassis mountable and has dimensions of 8.40" L x 4.15" W x 1.61" H (213.4mm x 105.4mm x 40.9mm). It operates within a temperature range of -20°C to 70°C with derating and complies with standards such as 60601-1 and 62368-1. Approvals include CE, TUV, and UKCA.
Key specifications include a universal input, adjustable output, and remote sense. The RoHS status is RoHS3 Compliant, MSL is 1 (Unlimited), and REACH status is REACH Unaffected.
The input voltage range is 100 to 240 VAC.
It provides 5V at 40A, 28V at 5A, 15V at 5A, and -15V at 5A.
The operating temperature range is -20°C to 70°C with derating.
The efficiency is 87%.
It complies with standards 60601-1 and 62368-1.
The mounting type is chassis mount.
