| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

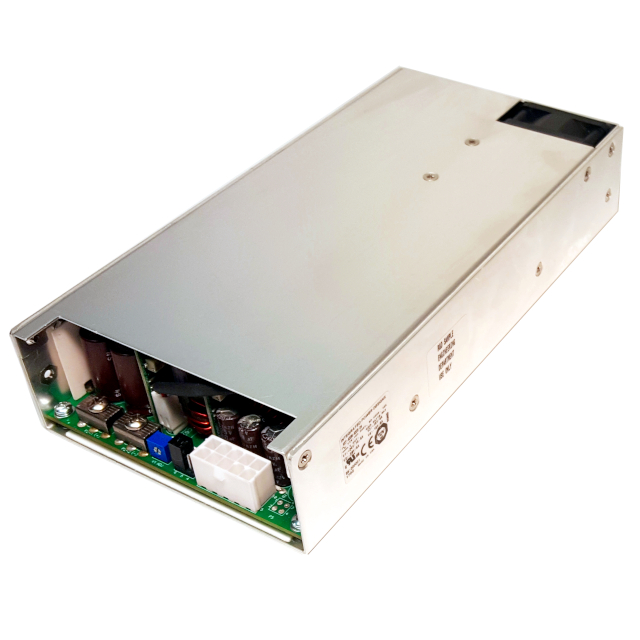

This Integrated Power Designs 101189302 is an enclosed AC/DC converter designed for versatile power supply applications. It operates with a universal input voltage range of 100 to 240 VAC, making it suitable for global use.
The converter delivers a total power of 400W and offers four distinct outputs: 5V at 40A, 28V at 5A, 12V at 5A, and -12V at 5A. Key features include adjustable output, remote sense capabilities, and an efficiency rating of 87%.
With dimensions of 8.40" L x 4.15" W x 1.61" H, it is designed for chassis mounting. The operating temperature range is -20°C to 70°C with derating. Approved by CE, TUV, and UKCA, this AC/DC converter meets standards such as 60601-1 and 62368-1, making it suitable for ITE (Commercial) and Medical applications.
The input voltage range is 100 to 240 VAC.
It has four outputs: 5V/40A, 28V/5A, +12V/5A, and -12V/5A.
87% efficiency.
-20°C to 70°C with derating.
Enclosed chassis mount design.
CE, TUV, UKCA, and complies with IEC 60601-1 and 62368-1.
ITE (commercial) and medical applications.
