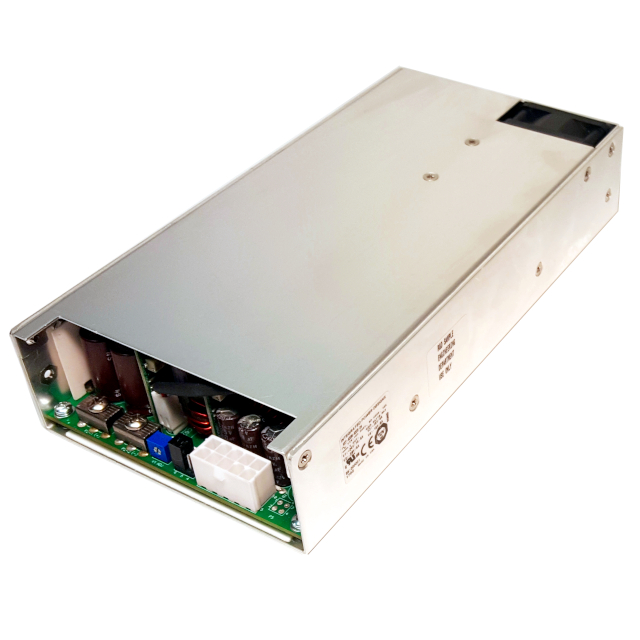

This Integrated Power Designs 101188902 is an enclosed AC/DC converter designed for commercial ITE and medical applications. It provides dual outputs of +15V and -15V, with current ratings of 20A and 10A respectively, and a total power capacity of 400W.
The converter operates with a universal input voltage range of 100 to 240 VAC and boasts an efficiency of 87%. Key features include adjustable output, remote sense, and compliance with standards such as 60601-1 and 62368-1. Its dimensions are 213.4mm x 105.4mm x 40.9mm, suitable for chassis mounting.
With an operating temperature range of -20°C to 70°C (with derating), this AC/DC converter is built for reliable performance in demanding environments. It is RoHS3 compliant and approved by CE, TUV, and UKCA agencies.
The 101188902 converter provides dual outputs of +15V and -15V.
The total power output is 400W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is -20°C to 70°C, with derating.
The dimensions are 213.4mm x 105.4mm x 40.9mm.
It complies with standards 60601-1 and 62368-1.
It is suitable for ITE (Commercial) and Medical applications.
