| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

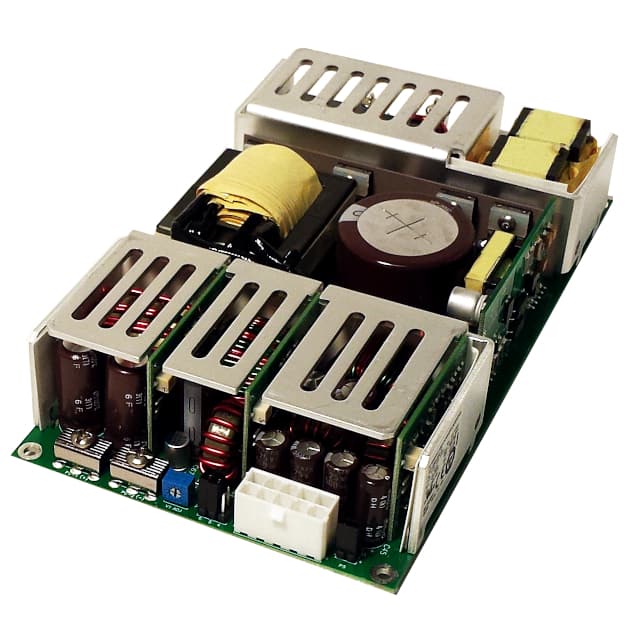

This AC/DC converter from Integrated Power Designs, part number 101188302CH, is designed for robust power conversion needs. It delivers a total of 400W with multiple output voltages: 5V, 15V, 12V, and -12V, supporting various system requirements.
The converter operates with a universal input voltage range of 100-240 VAC and achieves an efficiency of 87%. Key features include adjustable output, remote sense, and compliance with standards such as 60601-1 and 62368-1.
With a chassis mount type and an open frame construction, this unit is suitable for integration into ITE (Commercial) and Medical equipment. The operating temperature range is -20°C to 70°C with derating. Its dimensions are 180.3mm x 106.2mm x 38.0mm.
The unit is approved by CE, cURus, TUV, and UKCA agencies, indicating its suitability for a wide range of applications requiring reliable power conversion.
The 101188302CH provides output voltages of 5V, 15V, 12V, and -12V.
The total power output for the 101188302CH is 400W.
The input voltage range is 100 to 240 VAC.
The operating temperature range is -20°C to 70°C, with derating.
The dimensions are 180.3mm in length, 106.2mm in width, and 38.0mm in height.
It complies with standards 60601-1 and 62368-1.
Key features include adjustable output, remote sense, and universal input.
