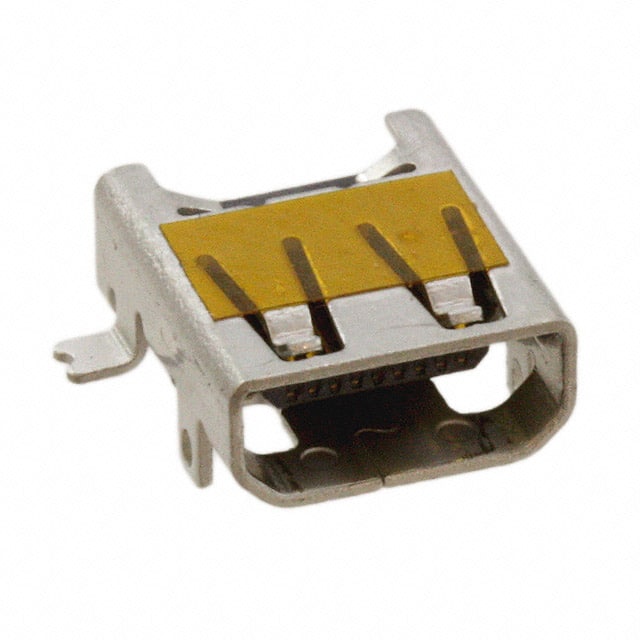

The Amphenol ICC 10118241-001RLF is a 19-position HDMI Micro (Type D) receptacle designed for compact electronic devices. It features a right-angle orientation with a hybrid mounting approach: surface mount for signal contacts and through-hole for hold-down, ensuring robust mechanical retention via solder retention features. The connector is rated for 0.3A maximum current per contact and 40V DC voltage, with a withstanding voltage of 250V AC. Contact resistance is 30 ohms maximum, insulation resistance is 100 megohms minimum, and shell resistance is 50 ohms maximum. The housing is made of black LCP, contacts are copper alloy with 15 microinches gold plating, and the shell is stainless steel with 80 microinches tin plating. The operating temperature range is -40°C to +85°C. It is packaged in tape and reel for automated assembly. This connector is suitable for high-density PCB designs requiring micro HDMI connectivity in portable devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.48 | $2.48 |
| 10+ | $2.11 | $2.11 |
| 25+ | $1.98 | $1.98 |
| 50+ | $1.88 | $1.88 |
| 100+ | $1.79 | $1.79 |
| 250+ | $1.68 | $1.68 |
| 800+ | $1.54 | $1.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
19 contacts.
0.3A maximum per contact.
40V DC.
Surface mount, right angle with through-hole hold-down for solder retention.
-40°C to +85°C.
5,000 cycles.
0.6 mm.
