| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Gender | |
| Lead Spacing | |
| Lead Style | |
| Mounting Feature | |
| Mounting Type | |
| Number of Contacts | |
| Number of Ports | |
| Operating Temperature | |
| Shielding | |
| Specifications | |
| Storage Temperature | |
| Termination | |
| Termination Style | |
| USB Specification | |
| Voltage | |
| Voltage Rating |

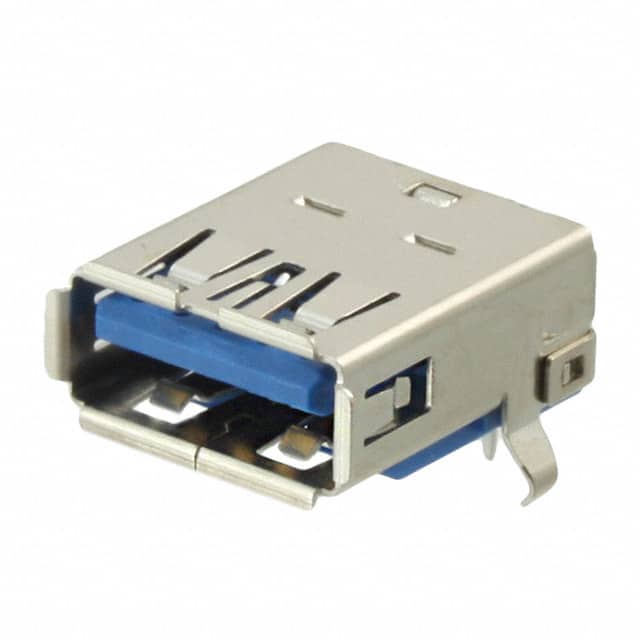

The Amphenol ICC 10117835-002LF is a USB-A (USB Type-A) receptacle connector designed for USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 / USB 3.0 SuperSpeed) applications. It provides 9 contacts in a single port configuration for high-speed data transfer and power delivery.
This connector is rated for 30VAC and dual current ratings of 0.25A and 1.8A, with an operating temperature range of -55°C to 85°C. It uses through hole right angle mounting and solder termination, making it suitable for horizontal PCB mounting. An integrated board lock feature ensures secure mechanical retention during assembly and use.
The unshielded design is appropriate for applications where EMI shielding is not required. The connector is RoHS3 compliant and has an MSL of 1 (unlimited floor life).
This connector supports USB 3.2 Gen 1 (also known as USB 3.1 Gen 1 / USB 3.0 SuperSpeed).
It uses through hole right angle mounting for horizontal PCB installation.
It is rated for 30VAC and dual current ratings of 0.25A on signal contacts and 1.8A on power contacts.
No, this connector is unshielded.
The operating temperature range is -55°C to 85°C.
