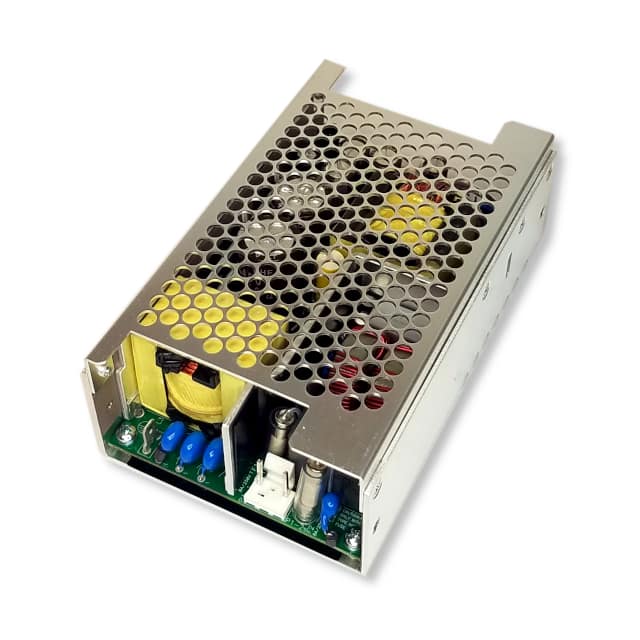

The Integrated Power Designs 1011770CHCO is an enclosed AC/DC converter with a power rating of 360W. It provides a single output voltage of 48V at 7.5A. The input voltage range is 85 to 264 VAC, supporting universal input functionality. This converter is designed for chassis mounting and operates within an ambient temperature range of -20°C to 70°C with derating.
Key specifications include an efficiency of 93% and approvals from CE, cURus, TUV, and UKCA. The dimensions are 129.54mm x 80.26mm x 45.72mm. Applications for this model include industrial, ITE (Commercial), laboratory, and medical sectors. It adheres to standards such as 60601-1 and 62368-1.
85 to 264 VAC.
48V DC.
7.5A.
360W.
93%.
-20°C to 70°C with derating.
IEC 60601-1 and IEC 62368-1. Approved by CE, cURus, TUV, and UKCA.
