| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

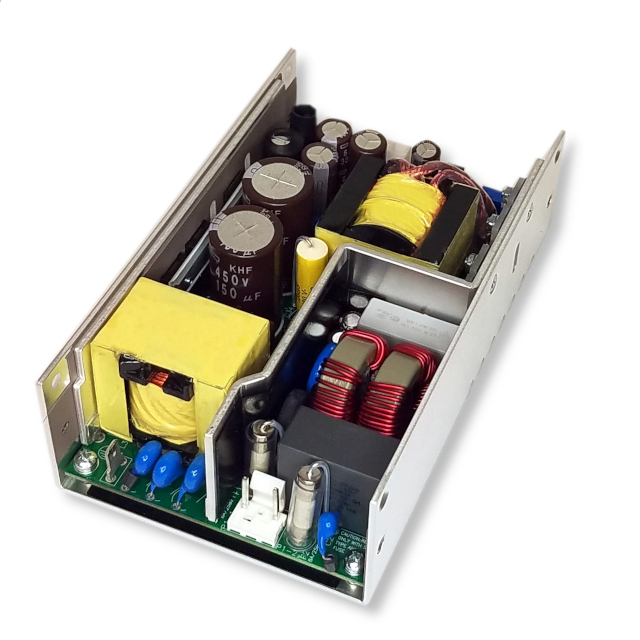

The Integrated Power Designs 1011767CH is a chassis-mount AC DC converter designed for industrial, ITE (Commercial), laboratory, and medical applications. It delivers a single output of 18V at 20A, providing a total power of 360W.
This converter operates with a universal input voltage range of 85 to 264 VAC and boasts an efficiency of 93%. Its compact dimensions are 5.10" L x 3.16" W x 1.80" H (129.54mm x 80.26mm x 45.72mm). The operating temperature range is -20°C to 70°C with derating.
Key features include universal input and compliance with standards such as 60601-1 and 62368-1. The device is RoHS3 compliant and has an MSL of 1.
85 to 264 VAC.
18V at 20A.
-20°C to 70°C with derating.
93%.
129.54mm x 80.26mm x 45.72mm.
CE, cURus, TUV, UKCA, and complies with 60601-1 and 62368-1.
Box.
