Mfr Part #:

1011658

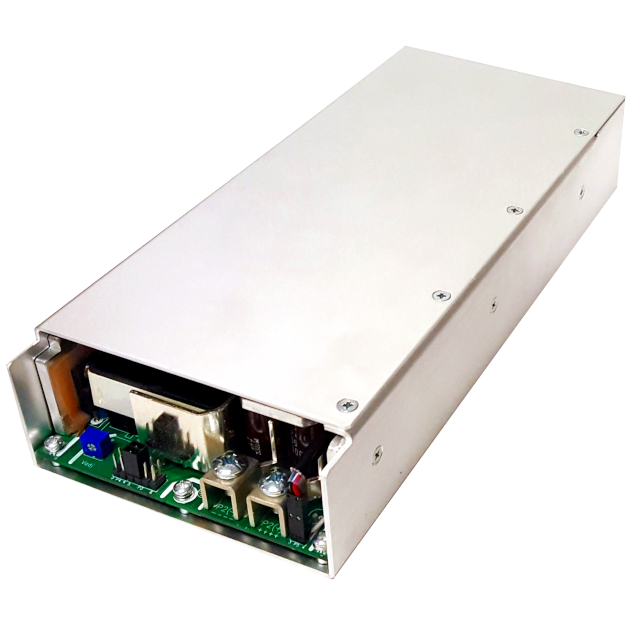

The Integrated Power Designs 1011658 is an enclosed AC/DC converter with a 28V output and 400W power rating. It features universal input and chassis mounting.

Stock on Request

1011658 Description

Short technical summary and product information.

The Integrated Power Designs 1011658 is an enclosed AC/DC converter designed for various applications, including ITE (Commercial) and Medical. It provides a single 28V output with a current rating of 14.3A, delivering a total power of 400W.

This converter operates with a universal input voltage range of 100 to 240 VAC and boasts an efficiency of 85%. Key features include adjustable output, remote sense capability, and compliance with standards such as 60601-1 and 62368-1. The operating temperature range is from 0°C to 70°C with derating.

With dimensions of 9.40" L x 4.06" W x 1.80" H (238.8mm x 103.1mm x 45.7mm), the 1011658 is designed for chassis mounting. It is RoHS3 Compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited. The REACH status is unaffected.

1011658 Quick Information

Product Type: AC DC Converter

Series: NXT-400 (400W)

Canonical Name: Enclosed AC/DC Converter

Subcategory: AC DC Converters

1011658 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

1011658 Features

Enclosed AC/DC converter with 400W power.
Provides 28V output at 14.3A current.
Universal input voltage range 100-240 VAC.
Features adjustable output and remote sense.
Designed for chassis mounting applications.

1011658 Applications

Powers medical imaging equipment requiring isolated DC rails.
Supplies control panels in automated manufacturing systems.
Drives industrial communication networks needing stable 28V power.
Supports rack-mounted test and measurement instrumentation.

1011658 FAQs

5 frequently asked questions generated from this part’s specifications.

What is the output voltage of the Integrated Power Designs 1011658?

The output voltage is 28V.

What is the power rating of the 1011658 AC/DC converter?

The power rating is 400W.

What is the operating temperature range for this AC/DC converter?

The operating temperature range is 0°C to 70°C with derating.

What are the dimensions of the Integrated Power Designs 1011658?

The dimensions are 9.40" L x 4.06" W x 1.80" H (238.8mm x 103.1mm x 45.7mm).

What is the RoHS status of the 1011658?

The RoHS status is RoHS3 Compliant.

Category	AC DC Converters
Manufacturer Name	Integrated Power Designs
Applications	ITE (Commercial), Medical
Approval Agency	CE, TUV, UKCA
Current	14.3 A
Duration	9.40" L x 4.06" W x 1.80" H (238.8mm x 103.1mm x 45.7mm)
Efficiency	85%
Features	Adjustable Output, Remote Sense, Universal Input
Height	45.7mm (1.80")
Length	238.8mm (9.40")
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	0°C ~ 70°C (With Derating)
Power (Watts)	400W
Standard Number	60601-1; 62368-1
Type	Enclosed
Voltage	100 ~ 240 VAC
Width	103.1mm (4.06")
