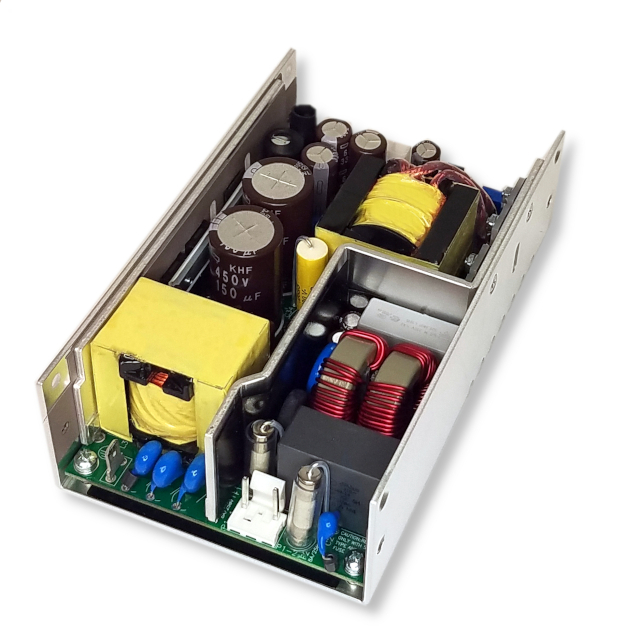

This AC/DC converter from Integrated Power Designs, part number 1011652CH, delivers a 36V output at 10A, providing a total power of 360W. It is designed for universal input voltage ranging from 85 to 264 VAC, making it suitable for global applications. The converter boasts a high efficiency of 93% and operates within a temperature range of -20°C to 70°C with derating.
Featuring a chassis mount type, this unit is intended for integration into industrial systems. Its dimensions are 5.10" L x 3.16" W x 1.80" H (129.54mm x 80.26mm x 45.72mm). The GRN-360 series converter is approved by CE, cURus, TUV, and UKCA, and complies with standards 60601-1 and 62368-1. It is suitable for applications in industrial, ITE (Commercial), laboratory, and medical sectors.
The RoHS status is ROHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 (Unlimited). The REACH status is unaffected. This model offers a single output and is packaged in a box.
The output voltage is 36V.
The maximum output current is 10A.
The power rating is 360W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -20°C to 70°C with derating.
The dimensions are 5.10" L x 3.16" W x 1.80" H (129.54mm x 80.26mm x 45.72mm).
It complies with standards 60601-1 and 62368-1.
