| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

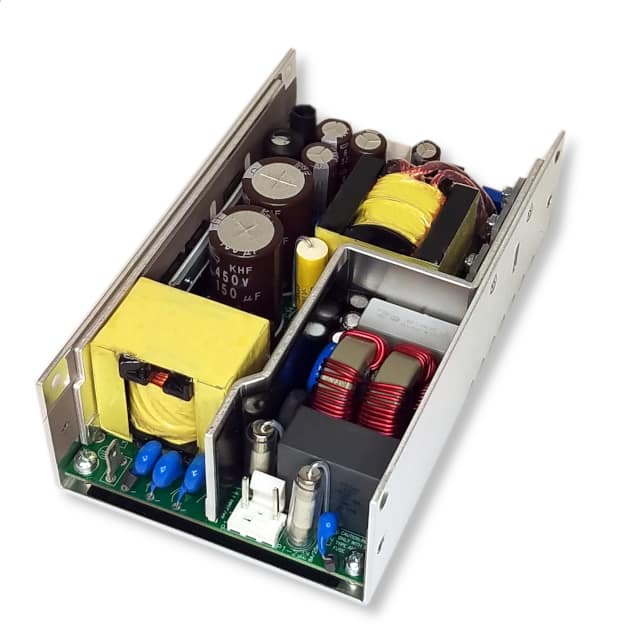

The Integrated Power Designs 1011648CH is a robust AC/DC converter designed for demanding applications. It delivers a stable 24V output with a maximum power rating of 360W and an impressive efficiency of 93%.
This converter features a universal input voltage range of 85 to 264 VAC, making it suitable for global use. Its design prioritizes reliability and performance, with a single output and a universal input feature.
The unit is housed in a chassis mount package, facilitating easy integration into industrial, ITE (Commercial), Laboratory, and Medical systems. It operates within a temperature range of -20°C to 70°C with derating, ensuring performance in various environmental conditions. The dimensions are 129.54mm x 80.26mm x 45.72mm.
Compliance is assured with approvals from CE, cURus, TUV, and UKCA, and it meets standards such as 60601-1 and 62368-1. The RoHS status is RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited.
85 to 264 VAC.
24 VDC at 15 A.
360 watts.
93%.
-20°C to 70°C with derating.
Chassis mount, supplied in a box.
Medical standard 60601-1 and ITE standard 62368-1.
