| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

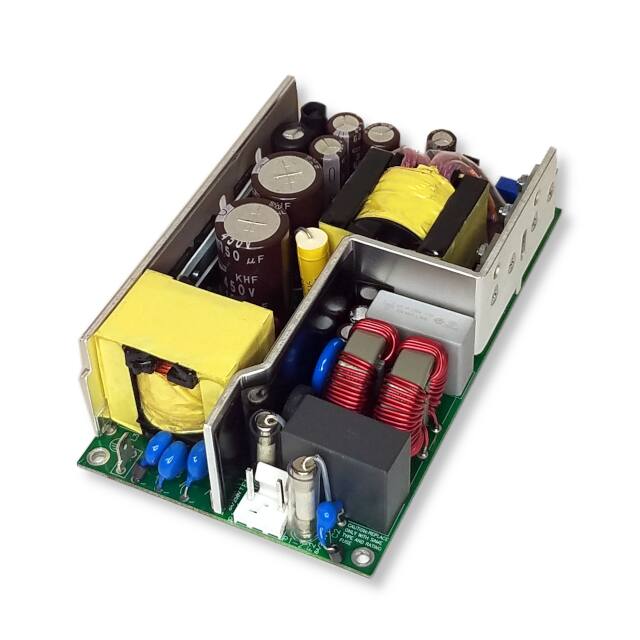

This AC/DC converter from Integrated Power Designs, part number 1011646, delivers 360W of power with a universal input voltage range of 85 to 264 VAC. It is designed as an open frame unit for convenient chassis mounting.
The converter offers a high efficiency of 93% and includes features such as universal input, making it suitable for a wide array of applications including industrial, ITE (commercial), laboratory, and medical environments. It provides a single output and operates within a temperature range of -20°C to 70°C, with derating applied at higher temperatures.
Key specifications include a current rating of 24A and compliance with standards such as 60601-1 and 62368-1. The dimensions are 127.0mm x 76.1mm x 37.8mm (5.00" x 3.00" x 1.49"). The unit is RoHS3 compliant and has an MSL rating of 1.
85 to 264 VAC universal input.
-20°C to 70°C with derating.
15V DC.
24A.
93%.
Chassis Mount.
CE, cURus, TUV, UKCA.
