| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

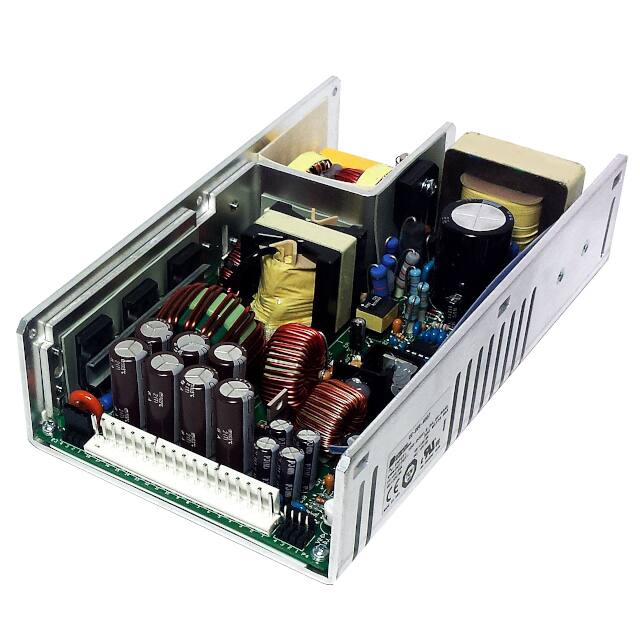

This Integrated Power Designs 1011610 is a chassis-mount AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a power output of 225W with a current rating of 4.7A.
The converter operates with a wide input voltage range of 85 to 264 VAC and features an efficiency of 74%. Key features include adjustable output, remote sense capabilities, and a universal input. The operating temperature range is 0°C to 70°C with derating.
Compliance is met with standards such as 60601-1 and 62368-1, and it holds approvals from CE, cURus, TUV, and UKCA. The dimensions are 203.2mm in length, 120.7mm in width, and 50.8mm in height.
This model is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
The input voltage range is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C with derating.
It provides a single 48V output at 4.7A.
The power rating is 225W.
It holds CE, cURus, TUV, and UKCA certifications to standards 60601-1 and 62368-1.
The dimensions are 203.2mm length, 120.7mm width, and 50.8mm height.
