| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

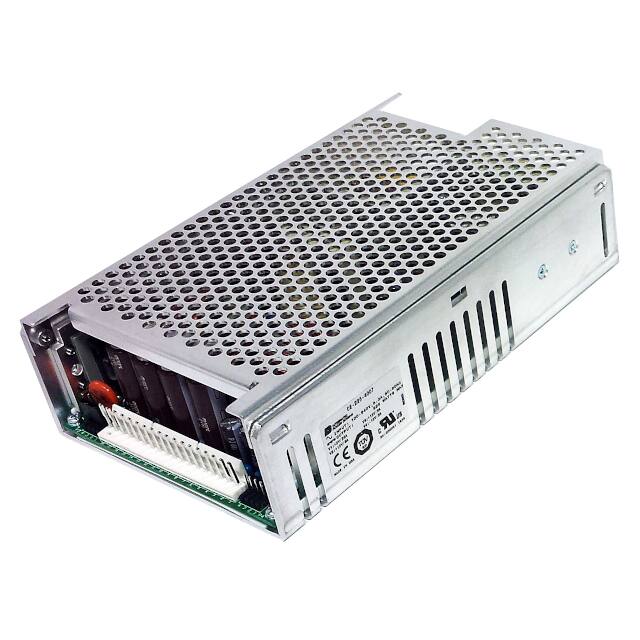

This AC/DC converter from Integrated Power Designs, part number 1011604CO, is an enclosed unit designed for ITE (Commercial) and Medical applications. It provides 225W of power with a 45A current output and accepts a wide input voltage range of 85 to 264 VAC.
Key features include adjustable output, remote sense, and universal input, making it versatile for various system designs. The converter has an efficiency of 74% and operates within a temperature range of 0°C to 70°C with derating. Its dimensions are 203.2mm in length, 120.7mm in width, and 55.1mm in height, with a chassis mount type.
Compliance is met with standards such as 60601-1 and 62368-1, and it holds approvals from CE, cURus, TUV, and UKCA. The RoHS status is RoHS3 Compliant, and it has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
The input voltage range is 85-264 VAC.
The operating temperature range is 0°C to 70°C with derating.
The converter provides 225W output at 3.3V with a current of 45A.
It is approved by CE, cURus, TUV, and UKCA, and complies with standards 60601-1 and 62368-1.
Yes, the output is adjustable and includes remote sense capability.
Dimensions are 203.2 mm (length) x 120.7 mm (width) x 55.1 mm (height).
