| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

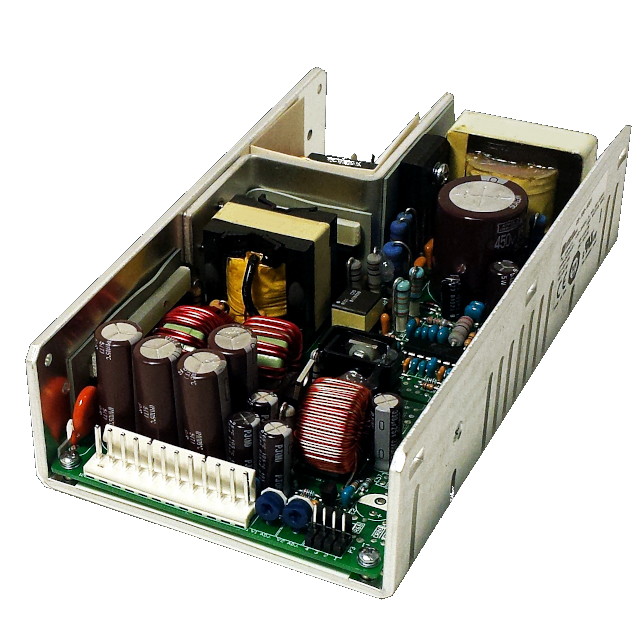

The 1011594 is a high-performance 150W AC/DC converter manufactured by Integrated Power Designs. Engineered for demanding environments, this unit delivers four distinct output voltages, including +5V, +12V, and ±15V, with a nominal current rating of 2A per rail. It supports a universal input voltage range of 85 to 264 VAC, ensuring reliable operation across global power standards.
Designed for robust industrial and commercial deployment, the converter utilizes a chassis mount configuration measuring 177.8mm x 101.6mm x 44.5mm. Key electrical features include adjustable output capability, remote sensing for precise voltage regulation, and an efficiency rating of 74%. The unit operates reliably within a temperature range of 0°C to 70°C, with derating applied at higher temperatures.
This power supply meets stringent safety and compliance standards, holding approvals from CE, cURus, TUV, and UKCA. It complies with IEC 60601-1 for medical equipment and IEC 62368-1 for information technology equipment. Ideal for applications requiring multiple regulated rails in a compact form factor, the 1011594 is well-suited for medical devices and commercial ITE systems where space and reliability are critical.
The 1011594 accepts a universal input voltage range of 85 to 264 VAC.
This unit provides four distinct output voltages, including +5V, +12V, and ±15V.
The converter operates reliably within a temperature range of 0°C to 70°C, with derating required at higher temperatures.
Yes, the device includes remote sense functionality to maintain precise output voltage regulation over cable runs.
The 1011594 holds CE, cURus, TUV, and UKCA safety approvals for international deployment.
Yes, the unit complies with IEC 60601-1 standards, making it suitable for medical applications.
