| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Pitch | |
| Termination |

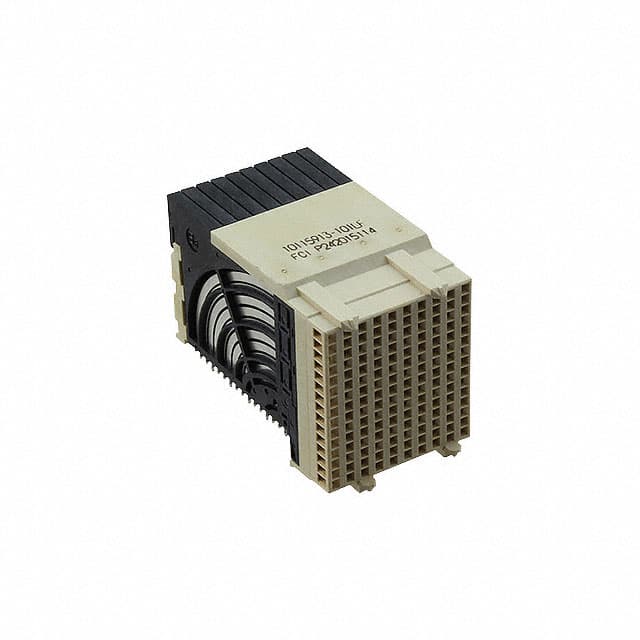

The Amphenol ICC 10115913-101LF is a specialized backplane connector designed for high-speed daughtercard applications.
This 150-position receptacle features a 1.40mm pitch (0.055") and uses press-fit termination for reliable solderless connection. The connector is mounted on the board edge with a right-angle orientation, making it suitable for compact system designs.
The contact finish is gold, ensuring stable signal integrity over repeated mating cycles. The housing is natural in color. All 150 positions are loaded, arranged in 10 columns. The connector style is high speed, supporting advanced data rate requirements. Board edge, through hole, and right-angle mounting types are accommodated, providing flexibility in PCB layout.
| Qty | Low | High |
|---|---|---|
| 1+ | $44.34 | $44.34 |
| 10+ | $37.68 | $37.68 |
| 29+ | $34.96 | $34.96 |
| 58+ | $33.29 | $33.29 |
| 116+ | $31.70 | $31.70 |
| 261+ | $29.94 | $29.94 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
150 positions, all loaded.
1.40mm (0.055").
Board edge, through hole, right angle.
Press-fit.
Listed as RoHS3 Compliant, but this status is unverified.
