| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,800 pcs
|
1800 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request | |
|
409 pcs
|
409 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Connector Style | |
| Connector Type | |
| Connector Usage | |
| Contact Finish | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Columns | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination |

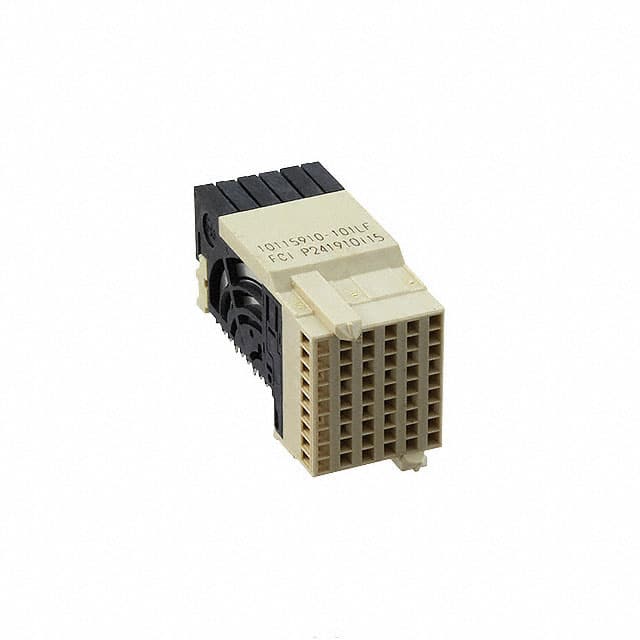

The Amphenol ICC 10115910-101LF is a high speed receptacle connector designed for daughtercard applications. It features 54 positions arranged in 9 rows and 6 columns with a 1.40mm pitch. The connector uses a press-fit termination method and is mounted via board edge, through hole, right angle configuration.
All 54 positions are loaded with female sockets that have a gold contact finish. The connector body is natural in color. This part is classified under the Specialized Backplane Connectors category and is suitable for high speed signal transmission in backplane and daughtercard interconnect systems.
The press-fit termination provides a solderless connection, reducing assembly time and improving reliability. The right angle orientation allows for space-efficient board-to-board connections.
| Qty | Low | High |
|---|---|---|
| 1+ | $18.12 | $18.12 |
| 10+ | $15.41 | $15.41 |
| 25+ | $13.79 | $13.79 |
| 50+ | $13.12 | $13.12 |
| 100+ | $12.85 | $12.85 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The connector has 54 positions, all loaded.
The pitch is 1.40mm (0.055 inches).
It is mounted via board edge, through hole, right angle.
It uses press-fit termination.
The contact finish is gold.
It has 9 rows and 6 columns.
