| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

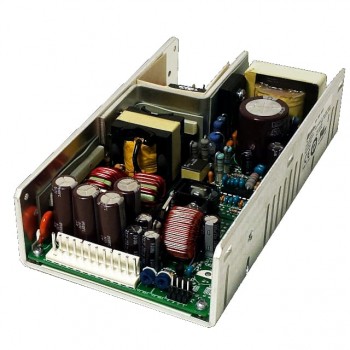

This AC/DC converter from Integrated Power Designs, part number 1011578, is designed for ITE (Commercial) and Medical applications. It operates with a universal input voltage range of 85 to 264 VAC and delivers a total power of 150W.
The converter features two outputs: 5V and 24V, with maximum currents of 15A and 5A respectively. Key features include adjustable output voltage and remote sense functionality, allowing for greater control and accuracy in power delivery. The efficiency is rated at 74% and it operates within a temperature range of 0°C to 70°C with derating.
Designed for chassis mounting, this converter has dimensions of 7.00" L x 4.00" W x 1.75" H (177.8mm x 101.6mm x 44.5mm). It meets safety standards including 60601-1 and 62368-1, and is approved by CE, cURus, and TUV agencies, indicating its suitability for various commercial and medical equipment.
Compliance information indicates RoHS3 compliance, MSL 1, and REACH unaffected status. The part is active and suitable for new designs.
The Integrated Power Designs 1011578 has two output voltages: 5V and 24V.
The 5V output has a maximum current of 15A, and the 24V output has a maximum current of 5A.
The input voltage range for the 1011578 is 85 to 264 VAC.
The operating temperature range is 0°C to 70°C, with derating.
The 1011578 complies with standards 60601-1 and 62368-1.
Yes, the RoHS Status is RoHS3 Compliant.
