| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

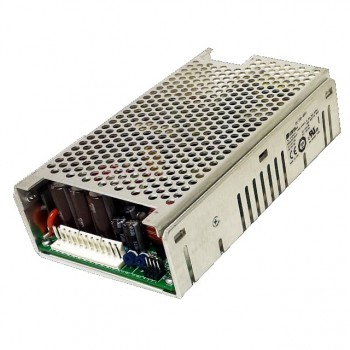

This Integrated Power Designs 1011562 is a chassis-mount AC DC converter designed for ITE (Commercial) and Medical applications. It delivers 150W of power with a single output voltage range of 3.0 to 3.3V and a maximum output current of 30A.
The converter operates with a universal input voltage range of 85 to 264 VAC and boasts an efficiency of 74%. Key features include adjustable output and remote sense functionality, enhancing its versatility in various designs. The operating temperature range is from 0°C to 70°C with derating.
With dimensions of 7.00" L x 4.00" W x 1.75" H (177.8mm x 101.6mm x 44.5mm), this unit is designed for chassis mounting. It holds approvals from CE, cURus, and TUV, adhering to standards 60601-1 and 62368-1, making it suitable for demanding applications.
The output voltage for the first output is 3.0 to 3.3V.
The maximum output current is 30A.
The input voltage range is 85 to 264 VAC.
The power rating is 150W.
The operating temperature range is 0°C to 70°C with derating.
Key features include adjustable output, remote sense, and universal input.
It is approved by CE, cURus, and TUV.
