| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

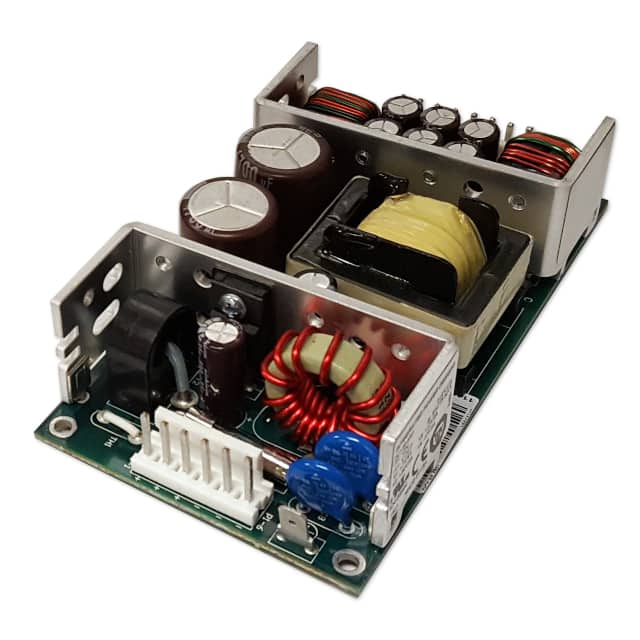

This Integrated Power Designs 1011539 is a versatile DC DC converter designed for ITE (Commercial) and Medical applications. It delivers up to 80W of power with an input voltage range of 9V to 18V.
The converter offers multiple outputs, including 5V, 24V, and +/-12V, with maximum output currents of 6A, 2A, 2A, and 2A respectively. It boasts an efficiency of 82% and operates within a temperature range of 0°C to 70°C with derating.
Designed with a Chassis Mount and Open Frame construction, this unit measures 114.3mm x 63.5mm x 29.7mm. It complies with industry standards such as 60601-1 and 62368-1 and holds approvals from CE, cURus, TUV, and UKCA.
Key specifications include a maximum input voltage of 18V and a minimum input voltage of 9V. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level (MSL) is 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is 0°C to 70°C (With Derating).
The maximum input voltage is 18V, the minimum input voltage is 9V, and it provides a -12V output.
The mounting type is Chassis Mount.
The RoHS status is RoHS3 Compliant.
The MSL is 1 Unlimited.
