| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

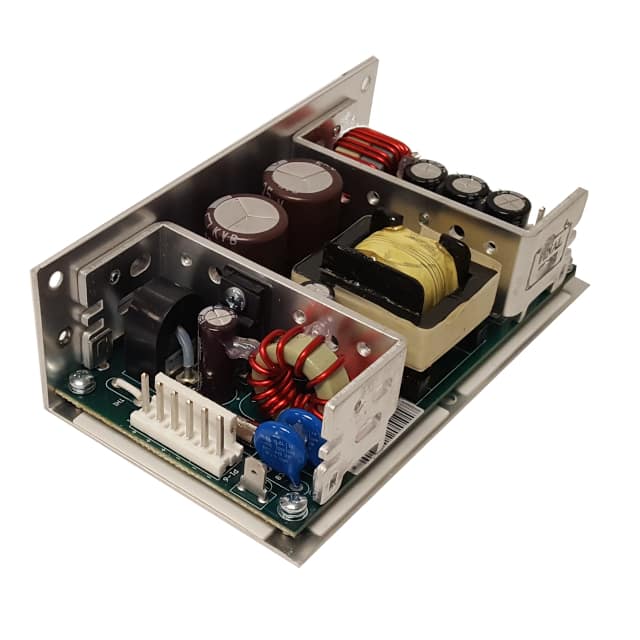

This 80W DC/DC converter from Integrated Power Designs, part number 1011522CH, is designed for chassis mounting. It operates with a 9V input voltage and provides a 16A output current. The converter boasts an efficiency of 82% and is suitable for applications in Information Technology Equipment (ITE) for commercial use, as well as medical equipment.
Key specifications include a single output, dimensions of 119.4mm x 68.9mm x 37.6mm, and an operating temperature range of 0°C to 70°C with derating. It adheres to standard numbers 60601-1 and 62368-1, and carries approvals from CE, cURus, TUV, and UKCA.
The unit is classified as RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. Its type is listed as Chassis, with a specific chassis mount type.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1011522CH DC/DC converter has an output current of 16A.
The input voltage for the 1011522CH DC/DC converter is 9V.
The 1011522CH DC/DC converter is suitable for ITE (Commercial) and Medical applications.
The operating temperature range is 0°C to 70°C, with derating.
The 1011522CH complies with standard numbers 60601-1 and 62368-1.
The 1011522CH is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
