| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

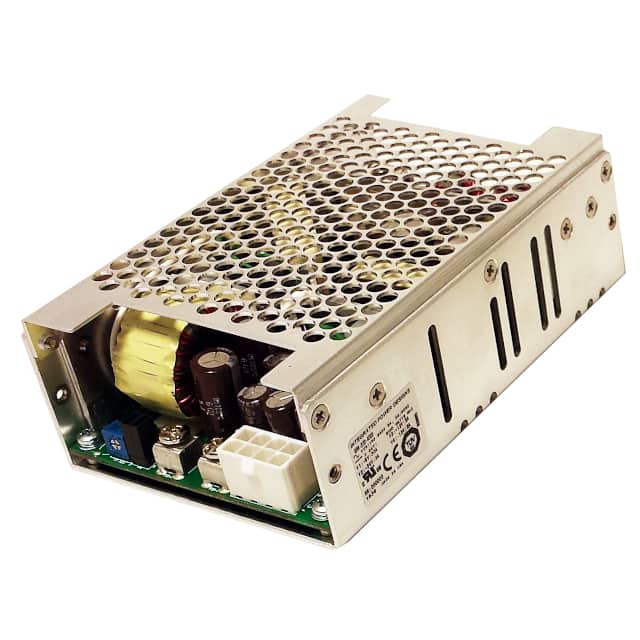

The Integrated Power Designs 1011514CHCO is a 200W enclosed AC/DC converter designed for ITE (Commercial) and Medical applications. It offers a universal input and features adjustable output, remote sense, and universal input capabilities.
This converter provides four outputs, including a -12V output with a nominal current of 2A. It operates within a temperature range of -20°C to 70°C with derating. The unit is chassis mountable and has dimensions of 127.0mm x 79.9mm x 41.9mm.
Compliance is indicated by CE, cURus, TUV, and UKCA approvals, with adherence to standards like 60601-1 and 62368-1. The RoHS status is listed as RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is Unaffected. The efficiency is rated at 89%.
Key specifications include a power rating of 200W, a -12V output, and a 2A current rating. The enclosure type is 'Enclosed', and the mounting type is 'Chassis Mount'.
The converter provides four outputs: 24V, 5V, +12V, and -12V.
-20°C to 70°C with derating.
Chassis Mount.
Enclosed.
CE, cURus, TUV, UKCA.
89%.
4.
