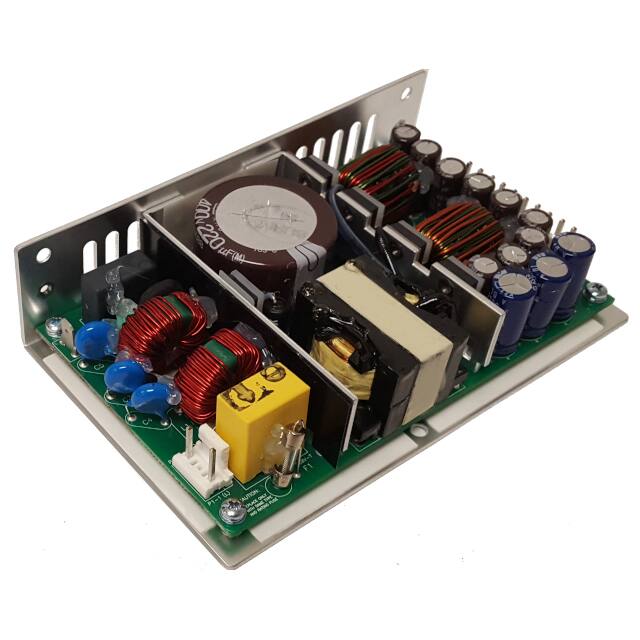

The Integrated Power Designs 1011511CH is an AC/DC converter with a power rating of 200W. It is designed for chassis mounting and accepts a universal input voltage range of 85 to 264 VAC.
This converter offers multiple output voltages, including 5V, 24V, and two 15V outputs, providing flexibility for various applications. Key features include adjustable output and remote sense capabilities, enhancing its utility in demanding environments. The efficiency is rated at 87%.
With dimensions of 127.0mm x 79.9mm x 41.9mm, the 1011511CH is suitable for integration into industrial, ITE (Commercial), laboratory, and medical equipment. It operates within a temperature range of 0°C to 70°C with derating and holds approvals from CE, cURus, TUV, and UKCA, adhering to standards like 60601-1 and 62368-1.
The 1011511CH AC/DC converter has a power rating of 200W.
The input voltage range for the 1011511CH is 85 to 264 VAC.
The 1011511CH provides multiple outputs, including 5V, 24V, and two 15V outputs.
The operating temperature range for the 1011511CH is 0°C to 70°C (With Derating).
The 1011511CH is designed for chassis mounting.
The 1011511CH is supplied in a Box package.
