| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Duration | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

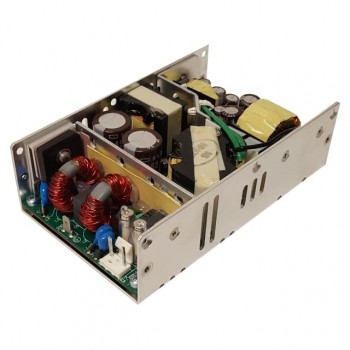

This Integrated Power Designs 1011501CH is a 200W AC/DC converter designed for ITE (Commercial) and Medical applications. It provides multiple outputs: 5V, +24V, and -24V, with a maximum current of 30A for the 5V output and 1.5A for the +/-24V outputs.
The converter operates with an input voltage range of 85 to 264 VAC and boasts an efficiency of 89%. Key features include adjustable output, remote sense capability, and universal input, making it versatile for various system designs. The unit is chassis mountable and operates within a temperature range of -20°C to 70°C with derating.
Approved by CE, cURus, and TUV, this converter meets standards such as 60601-1 and 62368-1. Its dimensions are 127.0mm x 76.2mm x 30.0mm (5.00" L x 3.00" W x 1.18" H).
The 1011501CH provides three outputs: 5V at 30A, 24V at 1.5A, and -24V at 1.5A.
The input voltage range is 85 to 264 VAC.
The power rating is 200W.
The operating temperature range is -20°C to 70°C with derating.
It complies with 60601-1 and 62368-1 safety standards.
The efficiency is 89%.
The mounting type is chassis mount.
