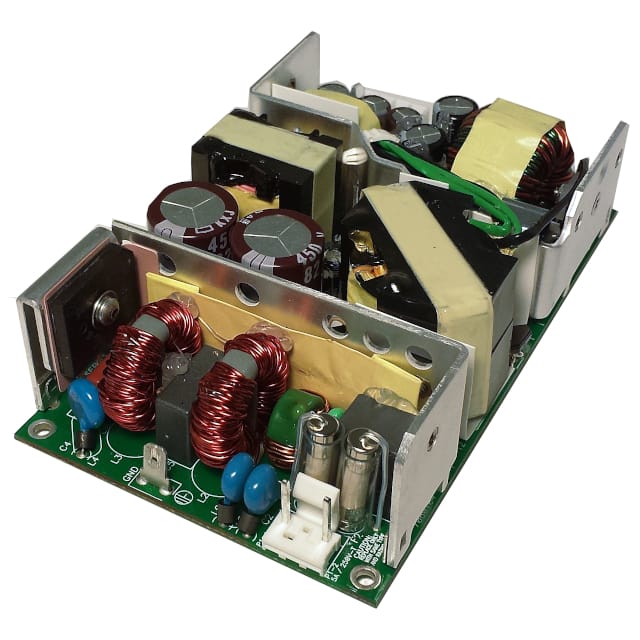

This Integrated Power Designs 1011490 is an AC/DC converter with a power rating of 200W. It offers four outputs, including a -12V line, and features an open frame design suitable for chassis mounting.
Key electrical specifications include an efficiency of 89% and features such as adjustable output, remote sense, and universal input. The operating temperature range is -20°C to 70°C with derating.
Designed for applications in industrial, ITE (Commercial), laboratory, and medical sectors, this converter meets standards such as 60601-1 and 62368-1. It has dimensions of 127.0mm x 76.2mm x 30.0mm.
Compliance includes RoHS3, MSL 1, and REACH Unaffected status. Approval agencies include CE, cURus, TUV, and UKCA.
The 1011490 provides four outputs delivering 5V, 3.3V, and dual ±12V rails.
The unit features four independent output channels for multi-rail power distribution.
The converter operates reliably between -20°C and 70°C with appropriate derating applied.
The device utilizes a chassis mount configuration for secure mechanical installation.
It complies with standards 60601-1 and 62368-1, holding CE, cURus, TUV, and UKCA approvals.
