| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

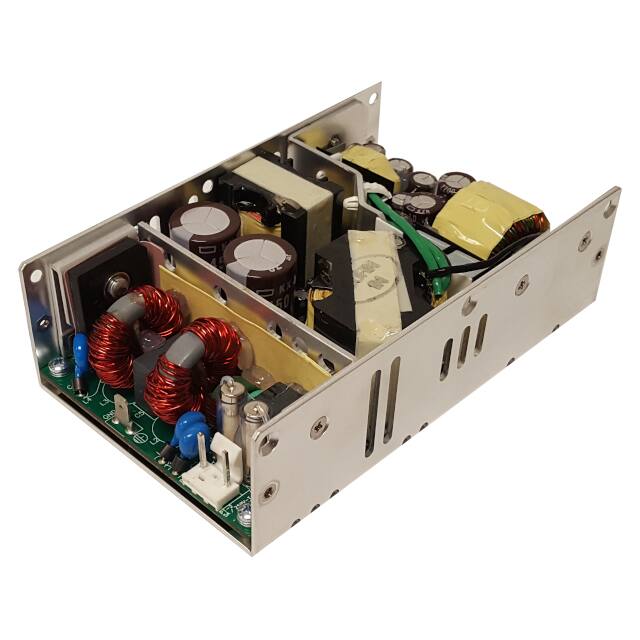

This Integrated Power Designs 1011489CH is a 200W AC/DC converter designed for chassis mounting. It provides a versatile solution with features such as adjustable output, remote sense, and universal input capabilities.
The converter operates with an efficiency of 89% and supports multiple output voltages, including -12V. Its robust design is suitable for demanding applications in industrial, commercial (ITE), laboratory, and medical environments.
Key specifications include a power rating of 200W, an output current of 2A, and an operating temperature range of -20°C to 70°C with derating. The dimensions are 127.0mm x 79.9mm x 41.9mm. It is compliant with safety standards such as 60601-1 and 62368-1 and holds approvals from CE, cURus, TUV, and UKCA.
The unit is RoHS3 compliant and has an MSL rating of 1, indicating unlimited shelf life under recommended storage conditions.
The operating temperature range is -20°C to 70°C with derating.
The converter provides four outputs: 3.3V, 5V, and ±12V.
The efficiency is 89%.
The power rating is 200W.
The mounting type is chassis mount.
It complies with standards 60601-1 and 62368-1.
