| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Storage Temperature | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

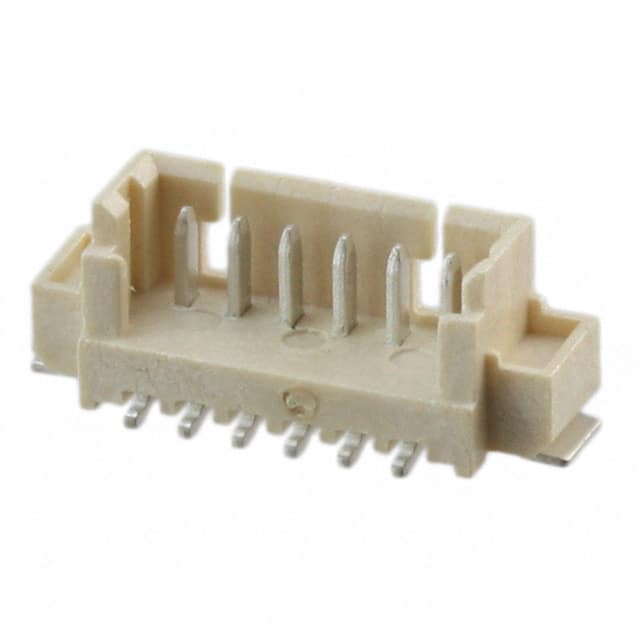

The Amphenol ICC 10114828-10106LF is a 6 position, single row, 1.25mm pitch header designed for board-to-cable/wire applications. This surface mount connector features a shrouded 3-wall housing that provides pin protection and alignment during mating. The header is equipped with a detent lock fastening system for secure connection.
Electrical ratings include 1A current and 125V voltage, with an operating temperature range of -40°C to 105°C. The contacts are made of copper alloy with tin finish, and the insulator is liquid crystal polymer (LCP) with UL94 V-0 flammability rating. The part includes a solder retention feature to aid in assembly.
Packaged for surface mount technology, this header is suitable for automated pick-and-place processes. The natural color insulator and rectangular pin contacts make it easily identifiable. With its 2.25mm contact length, it provides reliable mating with compatible cable assemblies.
6 positions.
1.25mm (0.049 inches).
1A.
125V.
Surface mount.
-40°C to 105°C.
Detent lock.
