| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

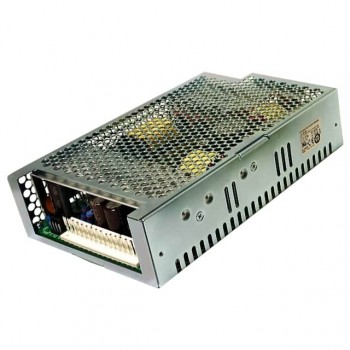

This AC/DC converter from Integrated Power Designs, part number 1011429CHCO, is designed for versatile applications including industrial, ITE (Commercial), laboratory, and medical environments. It features an enclosed package type and chassis mount for robust integration.
The converter operates with a universal input voltage range of 85 to 264 VAC. It provides four distinct output voltages: 5V, 12V, 28V, and 12V, with maximum output currents of 15A, 4A, 800mA, and 2A respectively. The total power output is rated at 185W, and it achieves an efficiency of 82%.
Key features include adjustable output, remote sense capabilities, and a universal input. The operating temperature range is from 0°C to 70°C with derating. The physical dimensions are 6.25" L x 3.96" W x 1.48" H (156.8mm x 100.5mm x 37.6mm). The unit is approved by CE, cURus, TUV, and UKCA, adhering to standards 60601-1 and 62368-1.
The input voltage range is 85 to 264 VAC.
Output 1: 5V at 15A, Output 2: 12V at 4A, Output 3: 28V at 0.8A, Output 4: 12V at 2A.
The operating temperature range is 0°C to 70°C with derating.
The mounting type is chassis mount.
The dimensions are 156.8mm x 100.5mm x 37.6mm.
It is approved by CE, cURus, TUV, and UKCA.
